3 1/2" ID 5000psi Working Pressure 15 Ft API 7K Rotary Drilling Hose suitable for rotary hose for flexible connection

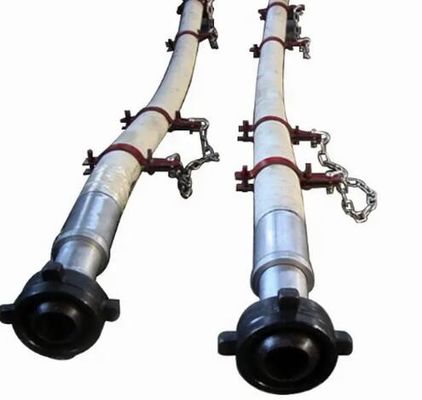

Large Image : 3 1/2" ID 5000psi Working Pressure 15 Ft API 7K Rotary Drilling Hose suitable for rotary hose for flexible connection

Product Details:

Place of Origin:	China
Brand Name:	Hebei Jingbo
Certification:	API 7K
Model Number:	3 1/2" 5000 PSI

Payment & Shipping Terms:

Minimum Order Quantity:	1 set 15Ft length
Price:	USD 500-8000 per set
Packaging Details:	Iron Case
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	200 sets per 1 months

Contact Now

3 1/2" ID 5000psi Working Pressure 15 Ft API 7K Rotary Drilling Hose suitable for rotary hose for flexible connection

Description

Name:	Rotary Drilling Hose	Standard:	API 7K
Advantage:	Anti-corrsion	Length:	15 Ft
Reinforcement:	Multiple Layers Of Textile Fabric And Steel Cable	Used For:	Flexible Connection
Tube Type:	C3	Cover Type:	C4
Connection:	Hammer Union
Highlight:	Multiple Layers Kill Hose , 50.8mm Kill Hose , Multiple Layers Choke Hose

3 1/2" ID 5000psi Working Pressure 15 Ft API 7K Rotary Drilling Hose

Flexible Connection Solution for Rotary Drilling Applications

The 3 1/2" ID rotary drilling hose is engineered for flexible connections in demanding drilling systems where both strength and mobility are essential. Rated for 5000 psi working pressure and manufactured to API 7K certification standards, this 15 ft hose delivers reliable performance in rotary applications.

Product Overview

This compact yet robust hose combines easy handling on the rig floor with reinforced construction that maintains consistent pressure control. Designed to minimize mechanical stress while safely circulating drilling fluids, it's ideal for both onshore and offshore drilling operations.

Key Features

Manufactured in compliance with API 7K / API 16C standards
High tensile strength with multiple reinforcement layers (steel wire/spiral)
Superior resistance to abrasion, oil, and harsh weather conditions
Flexible design for easy installation and reduced connection stress
Available in multiple sizes and pressure ratings to meet various rig requirements

Primary Applications

Oil and gas drilling rigs (onshore & offshore)
Mud circulation systems
High-pressure rotary service applications

Technical Specifications

Inner Diameter	3 1/2"
Working Pressure	5000 psi
Length	15 ft
Temperature Range	-30°C to +120°C
Coupling Types	API hammer union, flanged connections, or customized options

Quality Assurance

Each hose undergoes rigorous quality control testing to ensure compliance with international standards. Certifications including API 7K, API 16C, and ISO 9001 are available upon request.
