API 16D Koomey Bop Control Unit High Pressure For Remote Control

API 16D Koomey Bop Control System High Pressure

The function of the blowout preventer accumulator unit for surface mounted Bop stacks is preparing and prestoring enough hydraulic oil and controlling its flow direction, in order to open or close Bop quickly. As the hydraulic oil used, the pressure drops down, when the pressure lowers to a certain value, the blowout preventer accumulator unit will renew the hydraulic oil automatically to keep the pressure in a certain high value.


Koomey Bop Control System Parameters



Koomey Bop Control System Principle Description

1. The BOP control system is a special hydraulic equipment used to control the BOP and the hydraulic valve to close and open. For matching different types and specifications of the BOP stack and adapting to the requirements of different application environments,Rongsheng designed and manufactured various types of BOP control systems with different structures and specifications.
2. The remote control panel is equipped with two sets of independent pump groups. Electric pumps
pneumatic pumps or manual pumps with different flow rates can be provided. Rongsheng can offer the accumulator with China Star
dard, ASME, or CE mark. FKQ and FKDQ series can be provided with pneumatic-manual or pneumatic motor-driven pressure regulating valves, and the FKD series can be provided with electric-manual pressure regulating valves, to provide stable and reliable operating pressure for the bop. In the FKD series, the 4-way 3-position valve is a driven electromagnet, which adapts to lower ambient temperature and has a faster operation response.
3. The alarm device can be equipped according to the customer's request. It monitors the accumulator pressure, air supply pressure, and liquid level in the hydraulic oil reservoir. When the above parameters exceed the alarm limits, the audible and visual signals will appear immediately.
4. The auxiliary Dillr's panel can be equipped according to the customer's request, which can monitor the remote control panel.FKD and FKDQ seis can provide with wireless control panel, which can be used to remotely operate the BOP in a safe area in case of emergency, further improving the reliability of drilling construction.

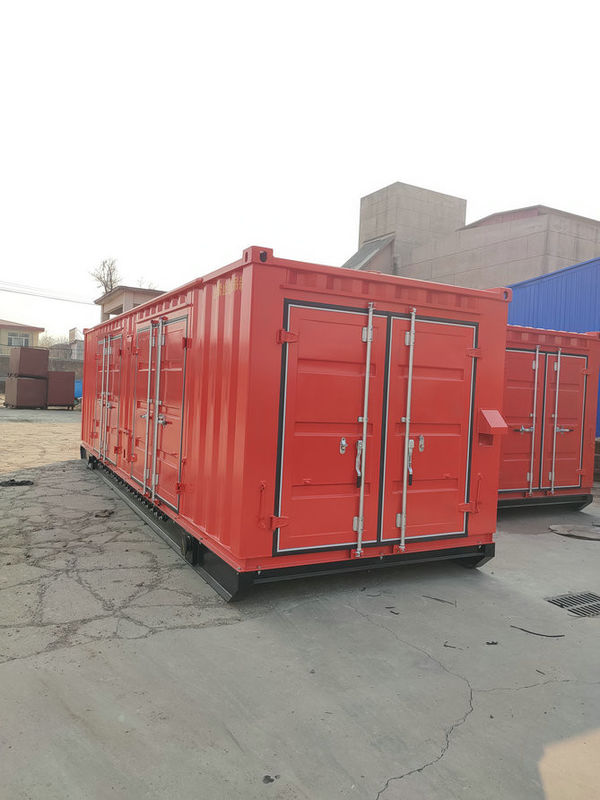

5. The system can be equipped with an insulated building, air conditioners, electric heaters, tank heaters, electric heating devices for air hose bundle, a heating device for BOP, etc, to adapt to low temperatures and another special fieldwork environment.



Note:
Q: The FKQ series uses a hose bundle to connect the killer's panel with the remote control pane, the dealer operates elements pneumatic rotary valves, the remote control panel uses a cylinder to drive the 4-way 3-position valve, and the series can choose pneumatic-manual o pneumatic motor driven pressure regulating valves,
DQ: The FKDQ series uses a signal cable to connect the teller's panel with the remote control panel, their operating element is a touch screen r l ctic button remote control panel uses a cylinder to drive the 4-way 3-position valve, with pneumatic motor driven pressure regulating valves.
D: The FKD series uses a signal cable to connect the dollar's panel with the remote control panel, throttle operating element is a touch screen o lectic buron remote control panel uses an electromagnet to drive the 4-way 3-position valve, with an electromotor driven pressure regulating valves.
if the customer wants to order an API Spec. 16D control system, and you need to mark the APl monogram on it you need to obtain a form named“configuration and parameters of the bop stacks for over an APl Spec. 16D control system land and surface)” from the Rongsheng sales department. After filing in the detailed led technical parameters, the Rongsheng technical department will carry out the selection calculation.
The optional device:
All series can choose BOP heating units, to heat bop in extremely cold environments, and enable the bop function normally the BOP should have heating too)FKDQ & FKD series can choose a wireless remote control function.
