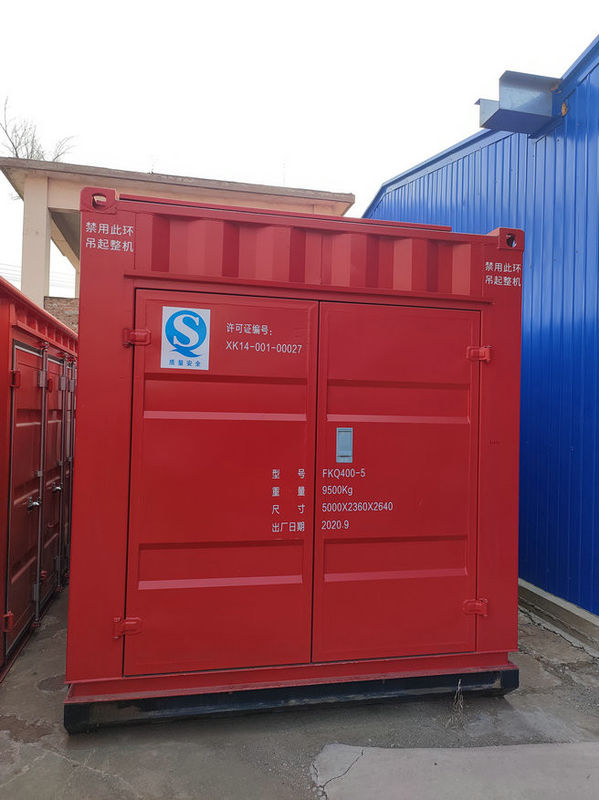

Oilfield Bop Control System Drilling Equipment
The function of the Bop Control System for surface-mounted BOP stacks is preparing and restoring enough hydraulic oil and controlling its flow direction, in order to open or close BOP quickly. As the hydraulic oil used, the pressure drops down, when the pressure lowers to a certain value, the control system will renew the hydraulic oil automatically, to keep the pressure in a certain high value.
Bop Control System Parameters
|
Item
|
Model
|
Number of Controlled Objects |
Accumulator Sets |
Effective Volume of Oil Reservoir (L) |
Flow Rate of Pump |
Motor Power (kW) |
Working Pressure (MPa) |
| Total Volume |
(L)
|
Nominal Available Volume (L) |
Electric Pump (L/min) |
Pneumatic Pump (ml/stroke) |
| 1 |
FKQ240-3 |
3 |
40×6 |
|
120 |
560 |
20 |
165 |
11 |
21 |
| 2 |
FKQ320-4 |
4 |
40×8 |
160 |
650 |
20 |
165 |
11 |
21 |
| 3 |
FKQ320-5 |
5 |
40×8 |
|
160 |
650 |
20 |
165 |
11 |
21 |
| 4 |
FKQ400-5 |
5 |
40×10 |
200 |
900 |
30 |
165 |
15 |
21 |
| 5 |
FKQ400-6 |
6 |
40×10 |
|
200 |
900 |
30 |
165 |
15 |
21 |
| 6 |
FKQ480-5 |
5 |
40×12 |
240 |
1000 |
30 |
165 |
15 |
21 |
| 7 |
FKQ480-6 |
6 |
40×12 |
|
240 |
1000 |
30 |
165 |
15 |
21 |
| 8 |
FKQ640-6 |
6 |
40×16 |
320 |
1300 |
40 |
165×2 |
18.5 |
21 |
| 9 |
FKQ640-7 |
7 |
40×16 |
|
320 |
1300 |
40 |
165×2 |
18.5 |
21 |
| 10 |
FKQ800-7 |
7 |
40×20 |
400 |
1500 |
40 |
165×2 |
18.5 |
21 |
| 11 |
FKQ800-8 |
8 |
40×20 |
|
400 |
1600 |
40 |
165×2 |
18.5 |
21 |
| 12 |
FKQ960-6 |
6 |
80×12 |
480 |
1800 |
40 |
165×3 |
18.5 |
21 |
| 13 |
FKQ960-7 |
7 |
80×12 |
|
480 |
1800 |
40 |
165×3 |
18.5 |
21 |
| 14 |
FKQ960-8 |
8 |
80×12 |
480 |
1800 |
40 |
165×3 |
18.5 |
21 |
| 15 |
FKQ1280-8 |
8 |
80×16 |
|
640 |
2000 |
40×2 |
165×3 |
18.5×2 |
21 |
| 16 |
FKQ1280-9 |
9 |
80×16 |
640 |
2000 |
40×2 |
165×3 |
18.5×2 |
21 |
| 17 |
FKQ1280-10 |
10 |
80×16 |
|
640 |
2000 |
40×2 |
165×3 |
18.5×2 |
21 |
| 18 |
FKDQ480-5 |
6 |
40×12 |
240 |
1000 |
30 |
165 |
15 |
21 |
| 19 |
FKDQ480-6 |
6 |
40×12 |
|
240 |
1000 |
30 |
165 |
15 |
21 |
| 20 |
FKDQ640-6 |
6 |
40×16 |
320 |
1300 |
40 |
165×2 |
18.5 |
21 |
| 21 |
FKDQ640-7 |
7 |
40×16 |
|
320 |
1300 |
40 |
165×2 |
18.5 |
21 |
| 22 |
FKDQ800-7 |
7 |
40×20 |
400 |
1500 |
40 |
165×2 |
18.5 |
21 |
| 23 |
FKDQ800-8 |
8 |
40×20 |
|
400 |
1600 |
40 |
165×2 |
18.5 |
21 |
| 24 |
FKDQ960-7 |
7 |
80×12 |
480 |
1800 |
40 |
165×3 |
18.5 |
21 |
| 25 |
FKDQ960-8 |
8 |
80×12 |
|
480 |
1800 |
40 |
165×3 |
18.5 |
21 |
| 26 |
FKDQ1280-8 |
8 |
80×16 |
640 |
2000 |
40×2 |
165×3 |
18.5×2 |
21 |
| 27 |
FKDQ1280-9 |
9 |
80×16 |
|
640 |
2000 |
40×2 |
165×3 |
18.5×2 |
21 |
| 28 |
FKDQ1280-10 |
10 |
80×16 |
640 |
2000 |
40×2 |
165×3 |
18.5×2 |
21 |
| 29 |
FKD640-6 |
6 |
40×16 |
|
320 |
1300 |
40 |
165×2 |
18.5 |
21 |
| 30 |
FKD800-7 |
7 |
40×20 |
400 |
1500 |
40 |
165×2 |
18.5 |
21 |
| 31 |
FKD960-8 |
8 |
80×12 |
|
480 |
1800 |
40 |
165×3 |
18.5 |
21 |
Key Points of BOP Control System selection
To control BOP reliably and safely, oil & natural gas industry standards SY/T5053.2-2007 and APl Spec 16D should be followed when you choose and purchase a suitable product. Factors to be considered should at least be:
- Relationship between liquid volume required for closing BOP stacks and liquid volume available from the control system
- Requirements of pump system;
- Whether it needs to meet the APl 16D standards;
- Environmental adaptation;
- Special requirements on the off-shore drilling platforms.
1 Options for controlled objects and accumulator available liquid volume
The accumulator group shall be configured so that the remaining pressure is greater than the maximum control pressure required
by the control object after closing all BOP and hydraulic valves.
Available volume from an accumulator group is recommended be 2 times greater than the required volume of closing BOP stacks.
2. Requirements of pump system
The main pumping unit shall be comprised of a minimum of two pump systems. The cumulative output capacity of the
pump systems shall be sufficient to charge the main accumulator system from precharge pressure to the system RWP within
15 minutes. With the loss of one pump system or one power system, the remaining pump system(s) shall have the capacity to
charge the main accumulator system from precharge pressure to the system RWP within 30 minutes.
With the accumulators isolated from service and with one pump system or one power system out of service, the remaining
pump system(s) shall have the capacity to close one annular BOP and open choke valve(s) within 2 minutes.
3. Whether it needs to meet the API 16D standards
If the customer wants to order an API Spec. 16D control system, and mark the API monogram, the customer need to obtain
a form named “configuration and parameters of the bop stacks for order an API Spec. 16D control system (land and surface)”
from Rongsheng sales department. After filling in the detailed technical parameters, the Rongsheng technical department will
carry out the selection calculation.
Note:
Q:The FKQ series uses hose bundle to connect the dillr's panel with the renole control pane ,the diler operating elemerti pneumatic rotar y valves,remotecontrol panel uses cylinder to drive the 4-way 3-position vave,tis series can choose pneumatic-manual o pneumatih motor drven pressure reguiating valves,
DQ: The FKDQ series uses signal cableto connect the trller's panel with the renote contro panel ,theaillr operating e lemen is touch soreen r l ctic butonremote control panel uses cylinder to drive the 4-way 3-position valve, with pneumatic motor driven pressure regulating valves.
D: The FKD series uses signal cableto connect the drllr's panel with the remote control panel,theotrlle operating elenent is touch screen o lectic buronremote control panel uses electromagnet to drive the 4-way 3-position valve, with electromotor driven pressure regulating valves.
lf the customer want to order an APl Spec. 16D control systen, and you need to mark the APl monogram on it you need to obitain a fom named“configurationand peramelers of the bop stacks for ovder an APl Spec. 16D control system jland and surace)”from Rongsheng sales department. Afitr flng in the deti ledtechnical parameters, the Rongsheng technical department will carry out the selection calculation.
The optional device:
All series can choose BOP heating units, to heating bop in extremely cold ernvironment,ena ble the bop tofuncion normlly the BOP shouls haveheatirg ucto)FKDQ & FKD series can choose wireless remote control function.
