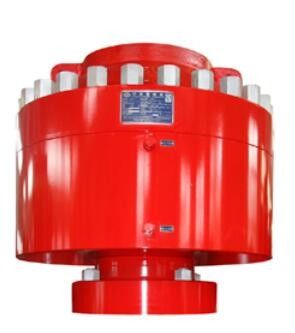

13 5/8 Inch Shaffer Annular Bop Preventer 3000psi For Wellhead

1 set
MOQ
USD 30000 set
Price
13 5/8 Inch Shaffer Annular Bop Preventer 3000psi For Wellhead
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Annular Preventer Bop
Application: Wellhead
Rated Working Pressure: 3000psi
Size: 13 5/8"
Temperature Range For Nonmetallic Sealing Materials: -26℃~+177℃
Performance Requirement: PR1、PR2
Highlight:

9 Inch Cameron Annular Bop

,

Wellhead Cameron Annular Bop

,

Wellhead Annular Preventer Bop

Basic Infomation
Place of Origin: China
Brand Name: Shaffer/Cameron/Rongsheng/Shenkai
Certification: API 16A
Model Number: 13 5/8"-3000psi
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

Wellhead Annular Preventer Bop 13 5/8"-3000psi



Annular Preventer Bop is shut in the well for oil testing, workover, well completion and operating process to prevent the blowout accident, totally enclosed and semi-closed two functions into one, Annular Preventer Bop has a simple structure, easy to operate, resistant to high-pressure characteristics is used to prevent blowouts safety oilfield sealing wellhead.



How the annular BOP work

Close – When the hydraulic oil is pumped into the extended port, the element inside will be lifted and squeezed into the pipe/tubular.

Open – On the other hand, if the hydraulic fluid is pumped into the retract port, the element will be pushed down resulting in releasing the tubular.

Annular vs RAM BOP

The annular blowout preventer performs several functions in drilling operations. It seals the annular space between the tubing, casing, and drill pipes. It also helps maintain the seal when the casing, tubing, or drill pipes are out of the drill hole. Unlike RAM blowout preventers, annular BOPs can seal various pipes of different sizes.



Annular Preventer Bop specs



Item

Specification for Annular BOP

Size and model

7 1/16″

-3000psi

7 1/16″

-5000psi

9″

-3000psi

9″

-5000psi

11″

-3000psi

11″

-5000psi

13 5/8″

-3000psi

13 5/8″

-5000psi

20 3/4″

-3000psi

21 1/4″

-5000psi

mm/in Bore (mm/in.)

179.4

7 1/16

179.4

7 1/16

228.6

9

228.6

9

279.4

11

279.4

11

346.1

13 5/8

346.1

13 5/8

527

20 3/4

539.8

21 1/4

Rated working pressure (MPa/psi)

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

Hydrostatic pressure testing pressure (MPa/psi)

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

31.5

4,500

70

10,000

Hydraulic-controlled rated working pressure (MPa/psi)

21/3,000

Recommended hydraulic working pressure seal pipe (MPa/psi)

1,218~1,522psi

Max. working pressure seal well without a pipe in (MPa/psi)

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

Recommended hydraulic working pressure seal well without a pipe in (MPa/psi)

≤10 .5/1,500

Open Max. oil volume (L)

15

15

22.8

33

39

56

69

69

110

181

Close Max. oil volume (L)

21

21

34

42

50

72

94

94

173

241

Lift weight by two lifting rings (t)

16

16

16

25

25

25

32

32

32

64

The outlet of hydraulic oil

NPT 1”

Temperature grade of metal

T-20/250(-29℃~121℃)

Temperature grade of non-metal

BAB (-18℃~66℃~93℃)

Medium material contact with well liquid

Per to NACE MR-01-75, meet API 16A 4th Edition Standard
