18 Inch Shaffer Annular Bop Annular Blowout Preventer For Drilling

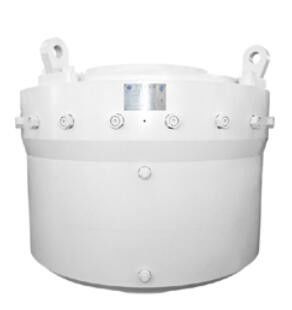

Large Image : 18 Inch Shaffer Annular Bop Annular Blowout Preventer For Drilling

Product Details:

Place of Origin:	China
Brand Name:	Hebei Pantu
Certification:	API 16A
Model Number:	FH48-35

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 30000 set
Packaging Details:	Iron Case
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	5 sets per 3 months

Contact Now

18 Inch Shaffer Annular Bop Annular Blowout Preventer For Drilling

Description

Size:	476.3 Mm 18 3/4"	Pressure:	35 Mpa 5000 Psi
Type:	Annular Blowout Preventer	Usage:	Drilling
Recommended Hydraulic Working Pressure Seal Well Without Pipe In (MPa/psi):	≤10 .5/1,500	Other Name:	Annular Bop
Highlight:	18 Inch Shaffer Annular Bop , 18 Inch Annular Blowout Preventer , Drilling Annular Blowout Preventer

476.3 Mm 18 3/4 Inch Annular Blowout Preventer For Drilling

The Annular Blowout Preventer BOP stack field proved its efficiency in performing good isolation around the drill pipe, across the open hole, and for performing shearing on the drill string. Here you will be able to understand Shaffer BOP ram and annular preventer type components and function.

(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in below list)

Item	Specification for Annular BOP
Size and model	7 1/16″-3000psi	7 1/16″-5000psi	9″-3000psi	9″-5000psi	11″-3000psi	11″-5000psi	13 5/8″-3000psi	13 5/8″-5000psi	20 3/4″-3000psi	21 1/4″-5000psi
通径mm/in Bore (mm/in.)	179.4 7 1/16	179.4 7 1/16	228.6 9	228.6 9	279.4 11	279.4 11	346.1 13 5/8	346.1 13 5/8	527 20 3/4	539.8 21 1/4
Rated working pressure (MPa/psi)	21 3,000	35 5,000	21 3,000	35 5,000	21 3,000	35 5,000	21 3,000	35 5,000	21 3,000	35 5,000
Hydrostatic pressure testing pressure (MPa/psi)	42 6,000	70 10,000	42 6,000	70 10,000	42 6,000	70 10,000	42 6,000	70 10,000	31.5 4,500	70 10,000
Hydraulic controlled rated working pressure (MPa/psi)	21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi)	1,218～1,522psi
Max. working pressure seal well without pipe in (MPa/psi)	10.5 1,500	17.5 2,500	10.5 1,500	17.5 2,500	10.5 1,500	17.5 2,500	10.5 1,500	17.5 2,500	10.5 1,500	17.5 2,500
Recommended hydraulic working pressure seal well without pipe in (MPa/psi)	≤10 .5/1,500
Open Max. oil volume (L)	15	15	22.8	33	39	56	69	69	110	181
Close Max. oil volume (L)	21	21	34	42	50	72	94	94	173	241
Lift weight by two lifting ring (t)	16	16	16	25	25	25	32	32	32	64
Outlet of hydraulic oil	NPT 1”
Temperature grade of metal	T-20/250(-29℃～121℃)
Temperature grade of non-metal	BAB (-18℃~66℃~93℃)
Medium material contacting with well liquid	Per to NACE MR-01-75, meet API 16A 4^th Edition Standard

Tag:

Contact Person: Peter

Tel: +86 19333067506
