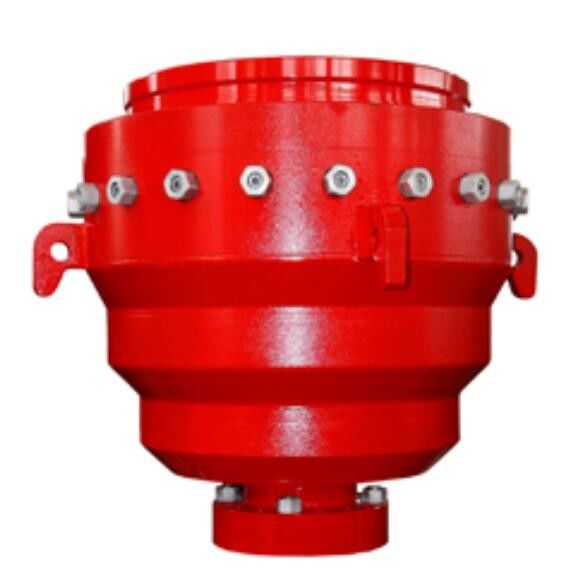

7 1/16" 10000psi Hydril Annular Bop API 16A
The Hydril Annular Bop is designed and manufactured in full conformity with the API 16A standard. The Hydril Annular Bop mainly consists of a body, a header, a rubber core, and a piston. The inner rubber core is interchangeable. While the Hydril Annular Bop can be used independently, it normally works with a single or a double BOP.It can seal the drilling tool or well bore efficiently, preventing oil well blowouts.
Hydril Annular Bop Parameters
(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in the below list)
| Item | Specification for Annular BOP | |||||||||
| Size and model |
7 1/16″ -3000psi |
7 1/16″ -5000psi |
9″ -3000psi |
9″ -5000psi |
11″ -3000psi |
11″ -5000psi |
13 5/8″ -3000psi |
13 5/8″ -5000psi |
20 3/4″ -3000psi |
21 1/4″ -5000psi |
| Bore (mm/in.) |
179.4 7 1/16 |
179.4 7 1/16 |
228.6 9 |
228.6 9 |
279.4 11 |
279.4 11 |
346.1 13 5/8 |
346.1 13 5/8 |
527 20 3/4 |
539.8 21 1/4 |
| Rated working pressure (MPa/psi) |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
| Hydrostatic pressure testing pressure (MPa/psi) |
42 6,000 |
70 10,000 |
42 6,000 |
70 10,000 |
42 6,000 |
70 10,000 |
42 6,000 |
70 10,000 |
31.5 4,500 |
70 10,000 |
| Hydraulic-controlled rated working pressure (MPa/psi) | 21/3,000 | |||||||||
| Recommended hydraulic working pressure seal pipe (MPa/psi) | 1,218～1,522psi | |||||||||
| Max. working pressure seal well without pipe in (MPa/psi) |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
10.5 1,500 |
17.5 2,500 |
| Recommended hydraulic working pressure seal well without pipe in (MPa/psi) | ≤10 .5/1,500 | |||||||||
| Open Max. oil volume (L) | 15 | 15 | 22.8 | 33 | 39 | 56 | 69 | 69 | 110 | 181 |
| Close Max. oil volume (L) | 21 | 21 | 34 | 42 | 50 | 72 | 94 | 94 | 173 | 241 |
| Lift weight by two lifting ring (t) | 16 | 16 | 16 | 25 | 25 | 25 | 32 | 32 | 32 | 64 |
| Outlet of hydraulic oil | NPT 1” | |||||||||
| Temperature grade of metal | T-20/250(-29℃～121℃) | |||||||||
| Temperature grade of non-metal | BAB (-18℃~66℃~93℃) | |||||||||
| Medium material contacting with well liquid | Per to NACE MR-01-75, meet API 16A 4th Edition Standard | |||||||||
