346.1mm 13 5/8 Inch Annular Blowout Preventer High Pressure

1 set
MOQ
USD 30000 set
Price

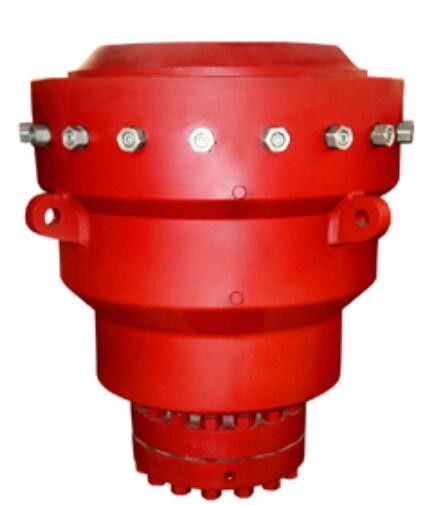

346.1mm 13 5/8 Inch Annular Blowout Preventer High Pressure
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Hydril Annular Bop
Size: 346.1mm 13 5/8"
Pressure: 10000 Psi
Advantage: High Pressure
Standard: API 16A
Application: Oil And Gas
Highlight:

13 Inch Spherical Blowout Preventer

,

High Pressure Spherical Blowout Preventer

Basic Infomation
Place of Origin: China
Brand Name: Shenkai
Certification: API 16A
Model Number: 13 5/8"-10000psi
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

346.1mm 13 5/8 Inch Hydril Annular Bop High Pressure



Hydril Annular Bop Feature



1. Hydril Annular Bop can fully seal the wellhead when there is no string inside the wellbore.

2. Hydril Annular Bop can seal the annulus space of the wellhead when there is a string, wire line and cable inside the wellbore.

3. Snubbing can be performed if the butt welding drill pipe has an 18°beve.



hydril annular bop specifications



(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in the below list)



Item Specification for Annular BOP
Size and model

7 1/16″

-3000psi

7 1/16″

-5000psi

9″

-3000psi

9″

-5000psi

11″

-3000psi

11″

-5000psi

13 5/8″

-3000psi

13 5/8″

-5000psi

20 3/4″

-3000psi

21 1/4″

-5000psi

Bore (mm/in.)

179.4

7 1/16

179.4

7 1/16

228.6

9

228.6

9

279.4

11

279.4

11

346.1

13 5/8

346.1

13 5/8

527

20 3/4

539.8

21 1/4

Rated working pressure (MPa/psi)

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

Hydrostatic pressure testing pressure (MPa/psi)

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

31.5

4,500

70

10,000

Hydraulic-controlled rated working pressure (MPa/psi) 21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi) 1,218~1,522psi
Max. working pressure seal well without a pipe in (MPa/psi)

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

Recommended hydraulic working pressure seal well without a pipe in (MPa/psi) ≤10 .5/1,500
Open Max. oil volume (L) 15 15 22.8 33 39 56 69 69 110 181
Close Max. oil volume (L) 21 21 34 42 50 72 94 94 173 241
Lift weight by two lifting rings (t) 16 16 16 25 25 25 32 32 32 64
The outlet of hydraulic oil NPT 1”
Temperature grade of metal T-20/250(-29℃~121℃)
Temperature grade of non-metal BAB (-18℃~66℃~93℃)
Medium material contact with well liquid Per to NACE MR-01-75, meet API 16A 4th Edition Standard
