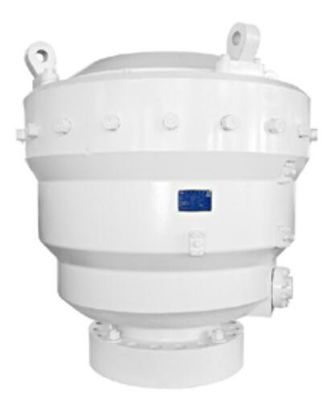

476.3mm 18 3/4" Hydril Annular Bop Annular Preventer Bop For Oil And Gas

1 set
MOQ
USD 30000 set
Price
476.3mm 18 3/4" Hydril Annular Bop Annular Preventer Bop For Oil And Gas
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Annular Preventer Bop Hydril
Other Name: Hydril Annular Bop
Size: 476.3mm 18 3/4"
Pressure: 5000 Psi
Standard: API 16A
Application: Oil And Gas
Highlight:

Oil Hydril Annular Bop

,

Oil Annular Preventer Bop

,

Gas Hydril Annular Bop

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 16A
Model Number: FHZ48-70
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

476.3mm 18 3/4" Annular Preventer Bop Hydril For Oil And Gas



Annular Preventer Bop Hydril is manipulated by the hydraulic control system. When it is shut off, high-pressure oil flows into piston's underside closed cavity through the oil port in the central shell, to push piston upwards, and the conical surface of piston squeezes rubber core. Due to the restrictions of head cover, rubber core can’t go upwards but is pushed towards the center of wellhead until it encloses drilling tool or enclose wellhead totally to shut the well.



Annular Preventer Bop Hydril specifications



(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in the below list)



Item Specification for Annular BOP
Size and model

7 1/16″

-3000psi

7 1/16″

-5000psi

9″

-3000psi

9″

-5000psi

11″

-3000psi

11″

-5000psi

13 5/8″

-3000psi

13 5/8″

-5000psi

20 3/4″

-3000psi

21 1/4″

-5000psi

Bore (mm/in.)

179.4

7 1/16

179.4

7 1/16

228.6

9

228.6

9

279.4

11

279.4

11

346.1

13 5/8

346.1

13 5/8

527

20 3/4

539.8

21 1/4

Rated working pressure (MPa/psi)

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

Hydrostatic pressure testing pressure (MPa/psi)

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

31.5

4,500

70

10,000

Hydraulic-controlled rated working pressure (MPa/psi) 21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi) 1,218~1,522psi
Max. working pressure seal well without a pipe in (MPa/psi)

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

Recommended hydraulic working pressure seal well without a pipe in (MPa/psi) ≤10 .5/1,500
Open Max. oil volume (L) 15 15 22.8 33 39 56 69 69 110 181
Close Max. oil volume (L) 21 21 34 42 50 72 94 94 173 241
Lift weight by two lifting rings (t) 16 16 16 25 25 25 32 32 32 64
The outlet of hydraulic oil NPT 1”
Temperature grade of metal T-20/250(-29℃~121℃)
Temperature grade of non-metal BAB (-18℃~66℃~93℃)
Medium material contact with well liquid Per to NACE MR-01-75, meet API 16A 4th Edition Standard
