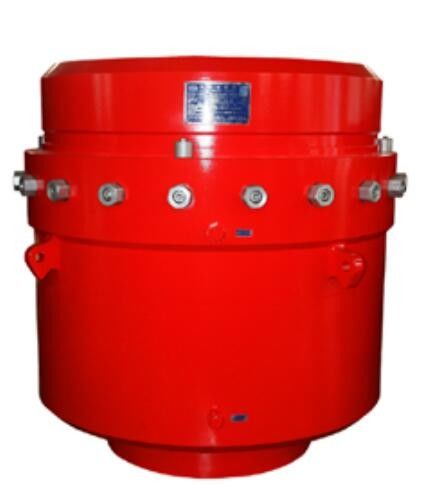

21 1/4" 2000 Psi Hydril Annular Bop API Standard In Conjunction

21 1/4" 2000 Psi Hydril Annular Bop API Standard In Conjunction
21 1/4" 2000 Psi Hydril Annular Bop API Standard In Conjunction

Large Image :  21 1/4" 2000 Psi Hydril Annular Bop API Standard In Conjunction

Product Details:
Place of Origin: China
Brand Name: Ronsgheng
Certification: API 16A
Model Number: FHZ54-14
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30000 set
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Contact Now

21 1/4" 2000 Psi Hydril Annular Bop API Standard In Conjunction

Description
Name: Hydril Annular Bop Size: 539.7 Mm 21 1/4"
Pressure: 2000 Psi Standard: API Standard
Hydrostatic Pressure Testing Pressure (MPa/psi): 70 / 10,000 Hydraulic-controlled Rated Working Pressure (MPa/psi): 21/3,000
Highlight:

API Hydril Annular Bop

,

2000 Psi Hydril Annular Bop

21 1/4" 2000 Psi Hydril Annular Bop API Standard



Hydril Annular Bop Used in conjunction with the hydraulic control system, the annular BOP seals off the annulus of different sizes when pipes are in use in the hole. An annular BOP can also seal off the annular space which is formed by Kelly, coring tool, cables, wire rope, etc. and wellbore when no pipe is in it.



hydril annular bop specifications



(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in the below list)



Item Specification for Annular BOP
Size and model

7 1/16″

-3000psi

7 1/16″

-5000psi

9″

-3000psi

9″

-5000psi

11″

-3000psi

11″

-5000psi

13 5/8″

-3000psi

13 5/8″

-5000psi

20 3/4″

-3000psi

21 1/4″

-5000psi
Bore (mm/in.)

179.4

7 1/16

179.4

7 1/16

228.6

9

228.6

9

279.4

11

279.4

11

346.1

13 5/8

346.1

13 5/8

527

20 3/4

539.8

21 1/4
Rated working pressure (MPa/psi)

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000
Hydrostatic pressure testing pressure (MPa/psi)

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

31.5

4,500

70

10,000
Hydraulic-controlled rated working pressure (MPa/psi) 21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi) 1,218～1,522psi
Max. working pressure seal well without a pipe in (MPa/psi)

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500
Recommended hydraulic working pressure seal well without a pipe in (MPa/psi) ≤10 .5/1,500
Open Max. oil volume (L) 15 15 22.8 33 39 56 69 69 110 181
Close Max. oil volume (L) 21 21 34 42 50 72 94 94 173 241
Lift weight by two lifting rings (t) 16 16 16 25 25 25 32 32 32 64
The outlet of hydraulic oil NPT 1”
Temperature grade of metal T-20/250(-29℃～121℃)
Temperature grade of non-metal BAB (-18℃~66℃~93℃)
Medium material contact with well liquid Per to NACE MR-01-75, meet API 16A 4th Edition Standard
