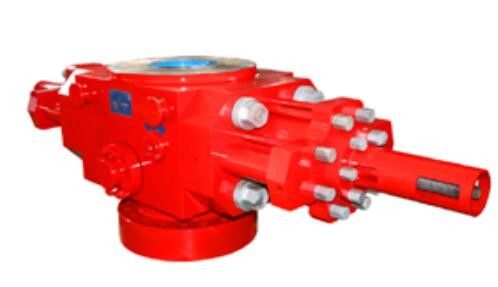

Oil 279.4MM Single Ram Bop 70MPA Blow Out Preventer
Oil Rig Blowout Preventer System Features:
1. When there is a well string, the Single Ram Bop can be coupled with a ram assembly to seal the annual space between the casing and tubing string;
2. When there is no well string, the Single Ram Bop can be coupled with full sealing disc assembly to close the wellhead;
3. When there is a tight type damper control device and the situation is urgent, the ram BOP can be coupled with a shear ram cut tubing string in the well, to seal the entire mouth of the well.
(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in the below list)
Item | Specification for Oil Rig Blowout Preventer System | |||||||||||||
Size and model |
7 1/16″ -3000psi |
7 1/16″ -5000psi |
7 1/16″ -100000psi |
9″- 3000psi |
9″ -5000psi |
11″ -3000psi |
11″ -5000psi |
11″ -10000psi |
13 5/8″ -3000psi |
13 5/8″ -5000psi |
13 5/8″ -10000psi |
20 3/4″ -3000psi |
21 1/4″ -5000psi |
26 3/4” -3000psi |
Bore (mm/in.) | 179.4 | 179.4 | 179.4 | 228.6 | 228.6 | 279.4 | 279.4 | 279.4 | 346.1 | 346.1 | 346.1 | 527 | 539.8 | 679.4 |
7 1/16 | 7 1/16 | 7 1/16 | 9 | 9 | 11 | 11 | 11 | 13 5/8 | 13 5/8 | 13 5/8 | 20 3/4 | 21 1/4 | 26 3/4 | |
Rated working pressure (MPa/psi) | 21 | 35 | 70 | 21 | 35 | 21 | 35 | 70 | 21 | 35 | 70 | 21 | 35 | 21 |
3,000 | 5,000 | 10,000 | 3,000 | 5,000 | 3,000 | 5,000 | 10,000 | 3,000 | 5,000 | 10,000 | 3,000 | 5,000 | 3,000 | |
Hydrostatic pressure testing pressure (MPa/psi) | 31.5 | 52.5 | 105 | 31.5 | 52.5 | 31.5 | 52.5 | 105 | 31.5 | 52.5 | 105 | 31.5 | 70 | 31.5 |
4,500 | 7,500 | 15,000 | 4,500 | 7,500 | 4,500 | 7,500 | 15,000 | 4,500 | 7,500 | 15,000 | 4,500 | 10,000 | 4,500 | |
Hydraulic-controlled rated working pressure (MPa/psi) | 21/3,000 | |||||||||||||
Recommended hydraulic working pressure seal pipe (MPa/psi) | 1218~1522psi | |||||||||||||
Volume for open one set rams | 36 L | |||||||||||||
Volume for close one set rams | 40 L | |||||||||||||
The outlet of hydraulic oil | NPT 1” | |||||||||||||
Temperature grade of metal | T-20/250(-29℃~121℃) | |||||||||||||
Temperature grade of non-metal | BAB (-18℃~66℃~93℃) | |||||||||||||
Medium material contact with well liquid | Per to NACE MR-01-75, meet API 16A 4th Edition Standard |
