11"-10000psi Blow Up Preventer Annular Preventer Bop In Drilling Operation Hydraulic locking

1 set
MOQ
USD 2500 set
Price
11"-10000psi Blow Up Preventer Annular Preventer Bop In Drilling Operation Hydraulic locking
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 10000psi Single Ram Bop
Size: 11 Inch
Pressure: 10000psi
Hydraulic Controlled Rated Working Pressure (MPa/psi): 21/3,000
Recommended Hydraulic Working Pressure Seal Pipe (MPa/psi): 1218~1522psi
Other Name: Blowout Preventer
Highlight:

10000psi Blow Up Preventer

,

10000psi Annular Preventer Bop

,

Drilling Operation Blow Up Preventer

Basic Infomation
Place of Origin: China
Brand Name: Rongsheng
Certification: API 16A
Model Number: 11"-10000psi
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

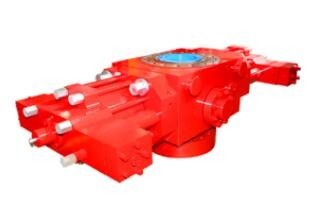

11" 10000psi Single Ram Bop API 16 A Blowout Preventer



Single Ram Bop is applicable in a variety of operating conditions including low temperature,high temperature and high content of sulphur,and they can fully satisfy the well control requirements in drilling operation , underbalanced drilling ,formation testing and down-hole operation.



(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in the below list)



Item Specification for Ram BOP
Size and model

7 1/16″

-3000psi

7 1/16″

-5000psi

7 1/16″

-100000psi

9″-

3000psi

9″

-5000psi

11″

-3000psi

11″

-5000psi

11″

-10000psi

13 5/8″

-3000psi

13 5/8″

-5000psi

13 5/8″

-10000psi

20 3/4″

-3000psi

21 1/4″

-5000psi

26 3/4”

-3000psi

Bore (mm/in.) 179.4 179.4 179.4 228.6 228.6 279.4 279.4 279.4 346.1 346.1 346.1 527 539.8 679.4
7 1/16 7 1/16 7 1/16 9 9 11 11 11 13 5/8 13 5/8 13 5/8 20 3/4 21 1/4 26 3/4
Rated working pressure (MPa/psi) 21 35 70 21 35 21 35 70 21 35 70 21 35 21
3,000 5,000 10,000 3,000 5,000 3,000 5,000 10,000 3,000 5,000 10,000 3,000 5,000 3,000
Hydrostatic pressure testing pressure (MPa/psi) 31.5 52.5 105 31.5 52.5 31.5 52.5 105 31.5 52.5 105 31.5 70 31.5
4,500 7,500 15,000 4,500 7,500 4,500 7,500 15,000 4,500 7,500 15,000 4,500 10,000 4,500
Hydraulic-controlled rated working pressure (MPa/psi) 21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi) 1218~1522psi
Volume for open one set rams                   36 L
Volume for close one set rams                   40 L
The outlet of hydraulic oil NPT 1”
Temperature grade of metal T-20/250(-29℃~121℃)
Temperature grade of non-metal BAB (-18℃~66℃~93℃)
Medium material contact with well liquid Per to NACE MR-01-75, meet API 16A 4th Edition Standard
