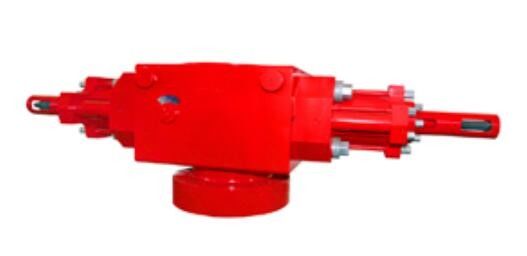

13 5/8 Inch 5000psi Single Ram Bop For Oilfield Drilling
Single Ram Bop Feature
1. Body and side door are made of alloy steel;
2.Use seal rings assembly to improve sealing of side door;
3. Use floating type ram. Front ram rubber is separated from top ram rubber, making it more reliable in sealing and easier to change;
4. Use buried oil way inside body. Loading hinge is separated from hydraulic hinge;
(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in below list)
Item | Specification for Ram BOP | |||||||||||||
Size and model | 7 1/16″-3000psi | 7 1/16″-5000psi | 7 1/16″-100000psi | 9″-3000psi | 9″-5000psi | 11″-3000psi | 11″-5000psi | 11″-10000psi | 13 5/8″-3000psi | 13 5/8″-5000psi | 13 5/8″-10000psi | 20 3/4″-3000psi | 21 1/4″-5000psi | 26 3/4”-3000psi |
通径mm/in Bore (mm/in.) |
179.4 7 1/16 |
179.4 7 1/16 |
179.4 7 1/16 |
228.6 9 |
228.6 9 |
279.4 11 |
279.4 11 |
279.4 11 |
346.1 13 5/8 |
346.1 13 5/8 |
346.1 13 5/8 |
527 20 3/4 |
539.8 21 1/4 |
679.4 26 3/4 |
Rated working pressure (MPa/psi) |
21 3,000 |
35 5,000 |
70 10,000 |
21 3,000 |
35 5,000 |
21 3,000 |
35 5,000 |
70 10,000 |
21 3,000 |
35 5,000 |
70 10,000 |
21 3,000 |
35 5,000 |
21 3,000 |
Hydrostatic pressure testing pressure (MPa/psi) |
31.5 4,500 |
52.5 7,500 |
105 15,000 |
31.5 4,500 |
52.5 7,500 |
31.5 4,500 |
52.5 7,500 |
105 15,000 |
31.5 4,500 |
52.5 7,500 |
105 15,000 |
31.5 4,500 |
70 10,000 |
31.5 4,500 |
Hydraulic controlled rated working pressure (MPa/psi) | 21/3,000 | |||||||||||||
Recommended hydraulic working pressure seal pipe (MPa/psi) | 1218~1522psi | |||||||||||||
Volume for open one set rams | 36 L | |||||||||||||
Volume for close one set rams | 40 L | |||||||||||||
Outlet of hydraulic oil | NPT 1” | |||||||||||||
Temperature grade of metal | T-20/250(-29℃~121℃) | |||||||||||||
Temperature grade of non-metal | BAB (-18℃~66℃~93℃) | |||||||||||||
Medium material contacting with well liquid | Per to NACE MR-01-75, meet API 16A 4th Edition Standard |
