11"-5000PSI Cameron type forged double ram BOP with tandem boosters

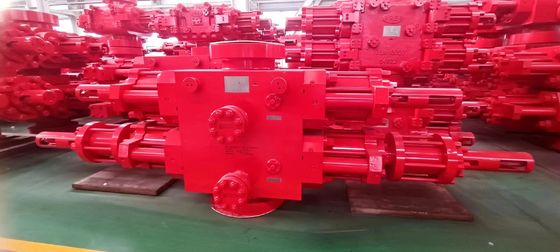

Large Image : 11"-5000PSI Cameron type forged double ram BOP with tandem boosters

Product Details:

Place of Origin:	China
Brand Name:	Rongsheng
Certification:	API 16A
Model Number:	11"-5000psi

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	30000-50000USD
Packaging Details:	Iron case
Delivery Time:	7 days
Payment Terms:	L/C, T/T
Supply Ability:	10 SET per month

Contact Now

11"-5000PSI Cameron type forged double ram BOP with tandem boosters

Description

Material:	4130 Forged	Shear Capacity:	With Boosters, Is Able To Shear 5" G105 Grade Drill Pipe
Type:	Cameron	Rams:	Shear Blind Ram And VBR
Standard:	API 16A	H2S:	H2S Trim, Meet NACE 0175 Standard
Metallic Temperature Class:	T-20/250	Non-matellic Temperature Class:	BAB
Monogrammed:	API Monogrammed	Certificates:	C/W COC And NDT And Pressure Test Reports

Technical Parameters of the Ram Blowout Preventer

Item	Single Ram Blowout Preventer		Double Ram Blowout Preventer
Specification	11”-5,000psi BOP		11”-5,000psi BOP
Top Connection	Studded	Flanged	Studded	Flanged
Bottom Connection	Flanged	Flanged	Flanged	Flanged
Height H mm	787		1230	1472
Weight	3779 ㎏		7050 ㎏	7296㎏
Bore Size	279.4mm (11″)
Hydrostatic test pressure	52.5MPa (7500psi)
Rated working pressure	35 MPa (5,000psi)
Hydraulic Control System Strength Test pressure	31.5 MPa(4,500psi)
Hydraulic Control System Rated Working Pressure	21 MPa(3,000psi)
Recommended Hydraulic Control Operating Pressure	8.4～10 .5MPa(1,200～1,500psi)
Opening chamber volume for one set of Ram	27 L
Closing chamber volume for one set of Ram	26 L
Thread of Hydraulic Port	NPT 1
Specification of the Side Outlet	3 1/8″-5,000psi or according to the specific contract
Temperature Grade	T20(-29～121℃) or according to the specific contract
Closure Ratioλ	1:11.79
Other Descriptions: The designing and the manufacturing of the blowout preventer are in accordance with the API Spec 16A norms. The resistance to the corrosive stress of hydrogen disulfide of the internal parts of the blowout preventer in contact with the well liquids conforms to the requirements specified in NACE MR-01-75.
