3 1/16” flanged, 10000 psi Coflexip hose API 16C for choke line with stainless steel protective flexible cover

Large Image : 3 1/16” flanged, 10000 psi Coflexip hose API 16C for choke line with stainless steel protective flexible cover

Product Details:

Place of Origin:	China
Brand Name:	Hebei Jingbo
Certification:	API 16C
Model Number:	3 1/16"-10000psi

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	100-1000 USD
Packaging Details:	Iron case
Delivery Time:	7 days
Payment Terms:	L/C,T/T
Supply Ability:	1000 SET per month

Contact Now

3 1/16” flanged, 10000 psi Coflexip hose API 16C for choke line with stainless steel protective flexible cover

Description

Connection:

Flanged

Material:

Stainless Steel Protective Flexible Cover

Temperature Class:

High Temp, 130 Deg C

H2S:

H2S Trim, Meet NACE 0175 Standard

Highlight:

3 1/16” flanged choke line hose

10000 psi API 16C Coflexip hose

stainless steel protective flexible cover hose

3 1/16" Flanged, 10000 psi Coflexip Hose API 16C for Choke Line with Stainless Steel Protective Flexible Cover

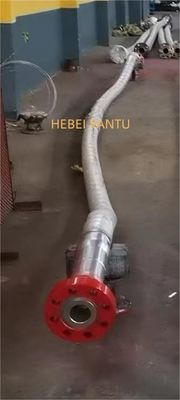

The 3 1/16" flanged Coflexip hose is specially designed for choke line applications in high-pressure drilling environments. Rated to withstand 10,000 psi, this hose complies fully with API 16C standards to ensure safe and stable performance during well control operations. Its robust stainless steel protective cover offers enhanced resistance against mechanical damage, abrasion, and harsh site conditions, while maintaining flexibility for easier installation and handling.

Key Features

Manufactured to API 16C standards for well control equipment
Designed for high pressure, high temperature, and harsh drilling environments
Multi-layer spiral steel wire reinforcement for superior strength
Inner tube resistant to oil, acid, H₂S, and abrasive drilling fluids
Flame-resistant and anti-static outer cover for safety in hazardous zones
Available with flanged, hub, or hammer union connections

Applications

Choke and kill manifolds
Surface blowout preventer (BOP) stack connections
High-pressure well control and circulation systems
Onshore and offshore drilling rigs

Technical Specifications

Inner Diameter	3 1/16"
Working Pressure	10,000 psi
Temperature Range	-30°C to +120°C
Connection Types	Flange, hub, hammer union, or customized
Certification	API 16C, ISO 9001

Quality Assurance

Every choke and kill line is fully tested for pressure, flexibility, and safety to ensure compliance with international standards and customer requirements.
