Double Ram BOP forged U type with hydraulic open and close bonnets shear structure with tandem boosters

1 set
MOQ
10000USD
Price
Double Ram BOP forged U type with hydraulic open and close bonnets shear structure with tandem boosters
Features Gallery Product Description Request A Quote
Features
Specifications
Size: 7 1/16″-26 3/4"
Working Pressure: 2000psi-15000psi
Material: 25CrNiMo Forged
Shear Structure: With Tandem Boosters
Connection: Top And Bottom Flanged
Basic Infomation
Place of Origin: China
Brand Name: Rongsheng
Certification: API 16A
Model Number: 7 1/16"-26 3/4"
Payment & Shipping Terms
Packaging Details: Iron case
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 100 SET per month
Product Description

Double Ram BOP



Technical Specification of Double Ram BOP with Booster

Item

Single ram bop

(with booster)

Double ram BOP

(one chamber with booster)

Model 13 5/8”-5000psi 13 5/8”-5000psi
Upper connecting type Studded Flanged Studded Flanged
Lower connecting type Flanged Flanged Flanged Flanged
Weight Kg 5680 5888 10371 10651
Height H mm 750 960 1285 1495
Gravity G mm 490 515 805 830
Performance requirement level PR2
Bore 346.1 mm (13 5/8″)
Test pressure of hydro-static pressure 51.8MPa (7,500psi)
Rated working pressure 34.5MPa (5,000psi)
Hydraulic control system strength pressure 31.1MPa(4,500psi)
Hydraulic control system rated working pressure 20.7MPa(3,000psi)
Recommended hydraulic control system operation pressure 8.4~10 .5MPa(1,222~1,518psi)
Cylinder diameter 342.9mm(13 1/2″)
Booster diameter 250mm(9 7/8″)
Oil volume required by opening one pair of ram 41L
Oil volume required by closing one pair of ram 43L
Oil volume required by closing one pair of ram(booster) 63L
Interface thread of hydraulic control pipe line NPT 1
Specification of side outlet 3 1/8″-5,000psi
Temperature Rating T-20/250(-29~121℃)(Or subjects to the contract)
Temperature Grades of Metal Material T20/250(-29~121℃)( Or subjects to the contract)
Temperature Grades of Metal Material BAB(extreme low pressure -18℃, continuous high temperature 66℃, extreme high temperature 93℃) (Or Subjects to the contract)
Closing Ratio 10.83:1
Closing Ratio(with booster) 17.4:1
Ram size for fitting

CSO, 2 3/8″, 2 7/8″, 3 1/2″, 4 1/2″, 5″, 5 1/2″, 7″, 9 5/8″, 9 7/8″, 4″,10 3/4″, 7 5/8″, 6 5/8″, 7 1/2″, 2 7/8″~5″, 3 1/2″~5 1/2″, 41/2″~7″, 2 3/8″~3 1/2″, 3 1/2″~5 7/8″, 3 1/2″dual hole, 2 7/8″dual hole, 2 7/8″X3 1/2″dual hole, ordinary shear ram, Sulfur-resistant Shear Ram

Note:It can install same type Cameron Ram (except shear ram)

Note: The design and manufacturing of BOP are subject to API Spec 16A specification.

The parts contacting with well fluid within BOP shall be able to resist hydrogen sulfide stress corrosion and all metallic parts contacting with well fluid meet the requirements of NACE MR-01-75/ISO15156.(except shear ram)

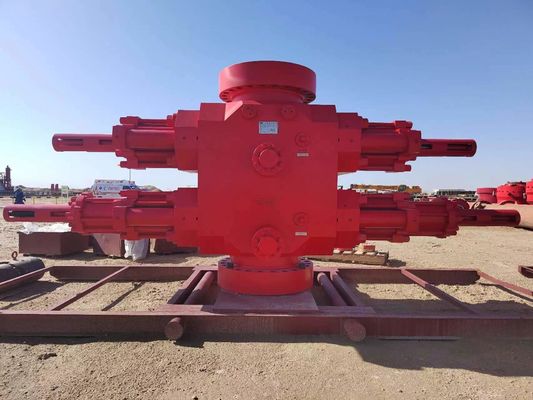

Double Ram BOP forged U type with hydraulic open and close bonnets shear structure with tandem boosters 0
