Shear Ram Assembly for 13 5/8"-5000psi double ram BOP with shear bonnets, it is able to shear S135 grade drill pipe.

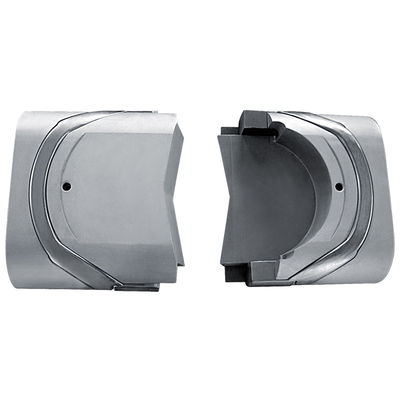

Figure 6 Ordinary Shear ram assembly
List 7 Part List of Ordinary Shear Ram Assembly
Item | P/N | Description | Qty. | Remark |
1 | RS11816.07.01.01 | Top seal | 2 | |
2 | RS11187.10.05A | Blade seal | 1 | |
3 | RS11816.07.10.01 | Upper shear Ram block | 1 | |
4 | RS11816.07.10.02 | Side seal I | 2 | |
5 | RS11816.07.10.03 | Side seal II | 2 | |
6 | RS11816.07.10.04 | Lower shear Ram block | 1 |
The ordinary shear ram is consists of upper ram block, lower ram block, top seals, side seal I, side seal II and blade seal. The blade seal is installed into dovetail with side seals at two sides. The installation into BOP of shear ram assembly is the same as normal ram without any modify.
