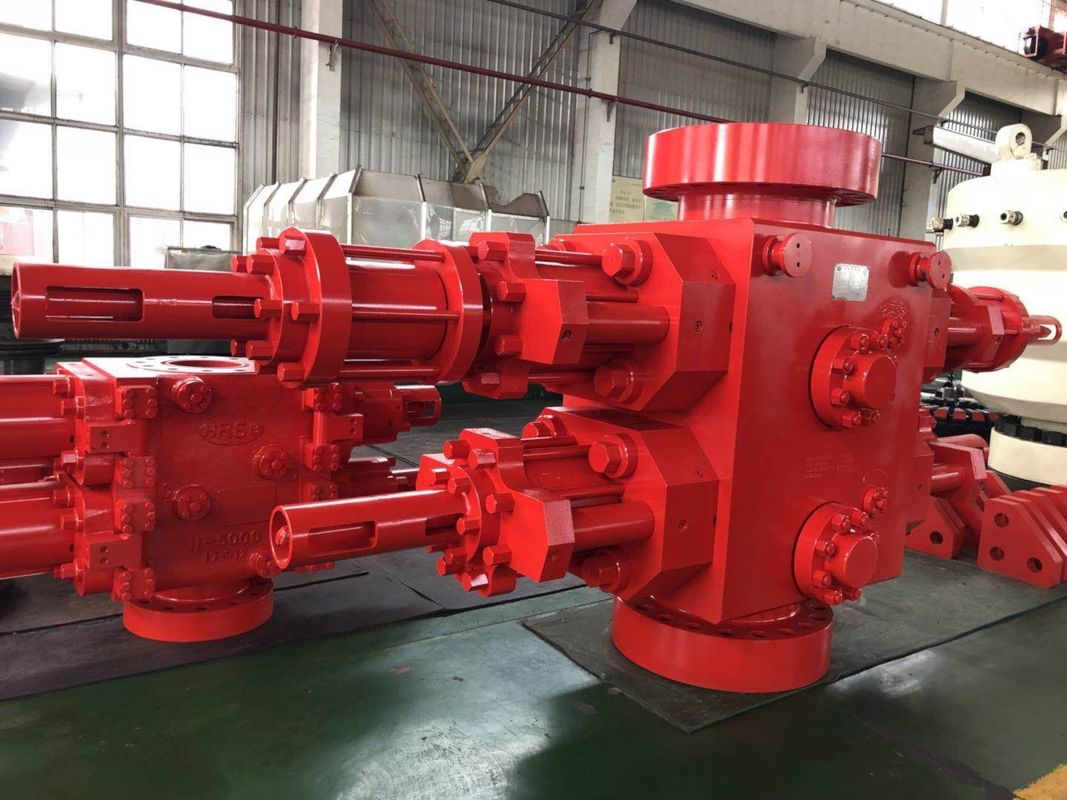

Forged Double Ram Blowout Preventer With Shear Capacity Hydraulic Open And Close

1 set
MOQ
10000USD
Price
Forged Double Ram Blowout Preventer With Shear Capacity Hydraulic Open And Close
Features Gallery Product Description Request A Quote
Features
Specifications
Working Pressure: 10000psi
Connection: Top And Bottom Flanged
Shear Capacity: With Boosters, Is Able To Shear 5 1/2" S135 Grade Drill Pipe
Material: 25 CrNiMo Forged
Metallic Temperature Class: T-20/250
Non-metallic Temperature Class: BAB (-18℃-121℃)
H2S: H2S Trim, Meet NACE 0175 Standard
API: API 16D Monogrammed
Highlight:

Shear Double Ram Blowout Preventer

,

Forged Double Ram Blowout Preventer

,

Hydraulic Open Double Ram Bop

Basic Infomation
Place of Origin: China
Brand Name: Shenkai
Certification: API 16A
Model Number: 13 5/8"-10000psi
Payment & Shipping Terms
Packaging Details: Iron case
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 10 SET per month
Product Description

13 5/8"-10000psi double ram blowout preventer, top and bottom flange (according to clients' requirements),Top cavity with tandem boosters are able to shear 5 1/2" S135 grade drill pipe, it meets NACE 0175, H2S Trim, Meet API 16A Latest edition, API Monogrammed.



Technical Parameters of the Ram BOP(without tandem booster)



Item Single Ram Blowout Preventer

Double Ram Blowout

Preventer

Specification 13 5/8” - 10,000psi SR BOP 13 5/8”- 10,000psi DR BOP
Top Connection Studded Flanged Studded Flanged
Bottom Connection Flanged Flanged Flanged Flanged
Height H mm 850 1130 1415 1695
Weight

5767 ㎏

(12,816 lb)

6322 ㎏ (14,049 lb) 10955 ㎏ (24,344 lb) 11510 ㎏ (25,578 lb)
Bore Size 346. 1 mm (13 5/8″)
Hydrostatic test pressure 105MPa (15,000psi)
Rated working pressure 70 MPa (10,000psi)
Hydraulic Control System Strength Test pressure 31.5 MPa(4,500psi)
Hydraulic Control System Rated Working Pressure 21 MPa(3,000psi)
Recommended Hydraulic Control Operating Pressure 8.4~10 .5MPa(1,200~1,500psi)
Cylinder diameter 342.9mm(13 1/2″)
Opening chamber volume for one set of Ram 41L
Closing chamber volume for one set of Ram 43L
Thread of Hydraulic Port NPT 1

Specification of the Side

Outlet

4 1/16″- 10,000psi or according to the specific contract
Temperature Grade T20(-29~121℃) or according to the specific contract
Closure Ratio 10.83: 1
Ram sizes

Blind Ram; 2 3/8 ″ ,2 7/8 ″ ,3 1/2 ″ ,4 1/2 ″ ,5 ″ ,5 1/2 ″ ,7 ″ ,9 5/8 ″ ,9

7/8 ″ ,normal and H2S service shear ram ,4 ″, 10 3/4″, 7 5/8″, 6 5/8″, 7 1/2″,2 7/8″~5″,3 1/2″~5 1/2″,4 1/2″~7″, 2 3/8″ ~3

1/2″,3 1/2″~5 7/8″, 3 1/2″dual hole, 2 7/8″dual hole, 3 1/2″X2

7/8” dual hole.

Note:The same specification of Cameron Rams can be installed in the BOP. (Except shear ram)

Other Descriptions:

The designing and the manufacturing of the blowout preventer are in accordance with the API Spec 16A norms.

The resistance to the corrosive stress of hydrogen disulfide of the internal parts of the blowout preventer in contact with the well liquids conforms to the requirements specified in NACE MR-01-75.
