Name: 10000psi Shaffer Type Single Ram Blowout Preventer With Standard Bonnets
Brand: Shenkai
SKU: 13 5/8"-10000psi
Price: 1000 USD
Availability: InStock
Rating: 4.5 (104 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Working Pressure: 10000psi

Connection: Top Studded And Bottom Flange

Material: ZG25CrNiMo Casted

Metallic Temperature: T-20/250

Non-metallic Temperature: BAB (-18℃-121℃）

Ring Grooves: Inlaid With SS 304 In All Ring Grooves

H2S: H2S Trim, Meet NACE 0175 Standard

API: API 16A Monogrammed

Highlight:

10000psi Single Ram BOP

Casted Single Ram Blowout Preventer

Shaffer Type Single Ram Blowout Preventer

Basic Infomation

Place of Origin: China

Brand Name: Shenkai

Certification: API 16A

Model Number: 13 5/8"-10000psi

Payment & Shipping Terms

Packaging Details: Iron case

Delivery Time: 7 days

Payment Terms: L/C, T/T

Supply Ability: 10 SET per month

Gallery

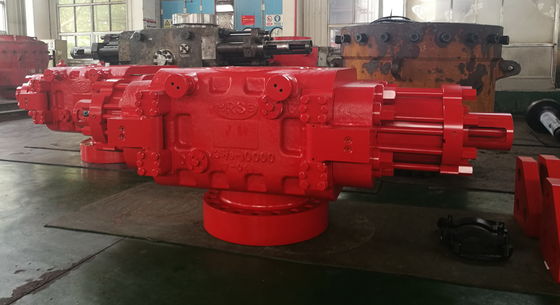

10000psi Shaffer Type Single Ram Blowout Preventer With Standard Bonnets

Product Description

13 5/8"-10000 PSI Single ram blowout preventer, top studded and bottom flanged, with standard bonnets, manual locking, all ring grooves welded with 304 stainless, H2S trim, meet NACE 0175, The metallic temperature class is T-20/250, the non-metallic temperature class is BAB (-18℃-121℃),meet API 16A 4TH Edition, API Monogrammed. Complete with COC, Test report, material report, heat treatment report etc.

Technical parameter of ram BOP

Item	Single Ram BOP with booster		Double Ram BOP with booster
Size	FZ35-70		2FZ35-70
Top connection type	Studded	Flanged	Studded	Flanged
Bottom connection type	Flanged	Flanged	Flanged	Flanged
Weight (Kg)	6898 (14,320 lb)	7433	12122 (26,555 lb)	12657 (27,800 lb)
Height (mm)	960	1250	1491	1775
Bore	346.1mm (13 5/8″)
Hydrostatic pressure testing pressure	105MPa (15,000psi)
Rated working pressure	70MPa (10,000psi)
Hydraulic control system strength working pressure	31.5MPa(4,500psi)
Hydraulic control system rated working pressure	21MPa(3,000psi)
Recommended hydraulic controlled operating pressure	8.4～10.5MPa(1,200～1,500psi)
Hydraulic Cylinder Bore	342.9mm(13 1/2″)
Booster Bore	250mm(9 7/8″)
Open one set of ram oil volume	29.5 L
Close one set of ram oil volume	33.5 L
Close one set of ram oil volume (Including boosters)	54L
Connection joint of hose	NPT 1
Size of outlet	4 1/16″-10,000psi according to the contract
Temperature grade	T20(-29～121℃) according to the contract
Close Ratio λ	1:7.4
Close Ratio λ (with Booster)	1:11.4
Note: BOP design and manufacture are all meet API Spec 16A. BOP provided can be used for H₂S service and also meet NACE MR-01-75.

List 5 Ram size for fitting

Ram size for fitting

The max pipe ram is 10 3/4″,5″～5 1/2″VBR ,2 7/8″～5″VBR,3 1/2″～5 ″VBR,5″～7″VBR,3 1/2″double hole, 2 7/8″double hole,2 3/8″double hole,shear ram
