Brief introduction of BOP
BOP stands for "Blowout Preventer." It is a critical piece of equipment used in the oil and gas industry, particularly in drilling operations. A BOP is designed to control and contain the pressure and flow of fluids (such as oil, gas, or drilling mud) from a well during drilling or well intervention activities. Its primary purpose is to prevent uncontrolled blowouts, which are sudden and uncontrollable releases of fluids from a well under high pressure.

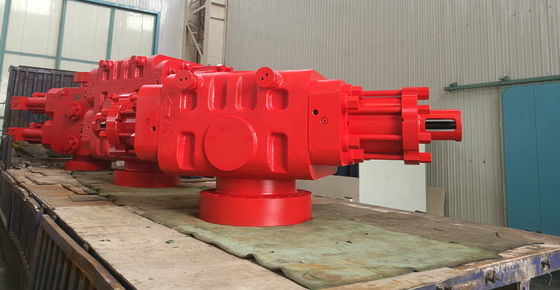

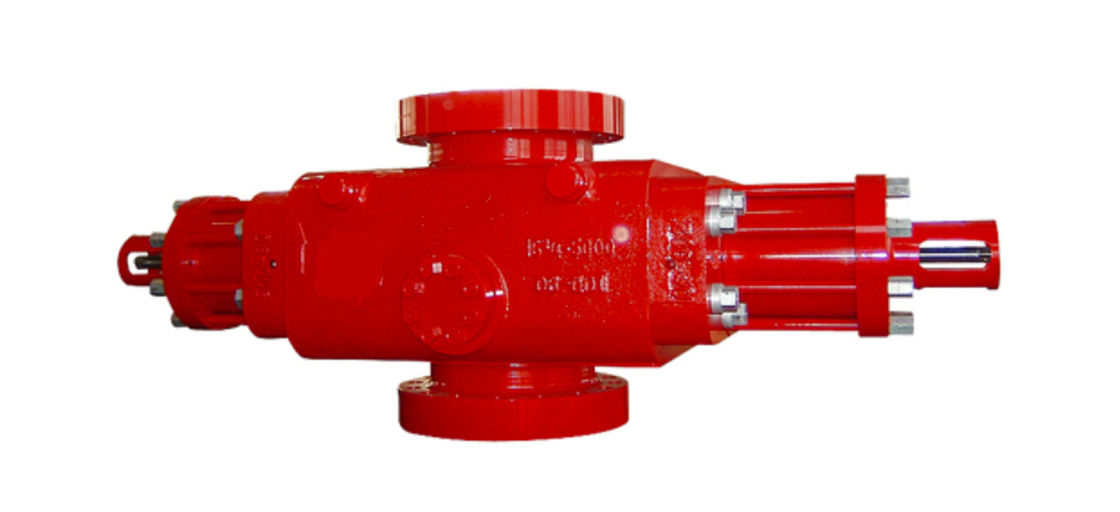

Parameter of 7 1/16"-3,000 psi Single Ram BOP
| Model | Casting, Manual Lock |
| Bore size | 7 1/16" |
| Working pressure | 3000 psi |
| Recommended operation pressure | 200-1500psi |
| Oil volume for opening one set of ram | 3.2L |
| Oil volume for closing one set of ram | 4L |
| Closing ratio | 4:1 |
| Top connection | Studded or Flanged |
| Bottom connection | Studded or Flanged |
| Interface thread of port | NPT 1 |
| Metalic material temperature rating | T20/250 |
| Non-metallic material temperature rating | BAB |
| Performance level | PR2 |
| Standard | API 16A, NACE MR0175 |
| Dimension | 1190*385*334 |
| Weight | 410KG |
BOP Drawing
Competitive Advantages
Who we are
Hebei Pantu Machinery Equipment Co., Ltd. is a comprehensive international company integrating production, sales and trading. The main products are well-control equipment such as BOP, Choke and Kill Manifold, Koomey Umit (BOP Control System), High-Pressure Hose, Mud Cross, Spacer Spool, DSA, and all kinds of valves and spares etc.
Note:
The design and manufacturing of BOP are subject to API Spec 16A specification.
The parts contacting with well fluid within BOP shall be able to resist hydrogen sulfide stress corrosion and all metallic parts contacting with well fluid meet the requirements of NACE MR-01-75/ISO15156.
