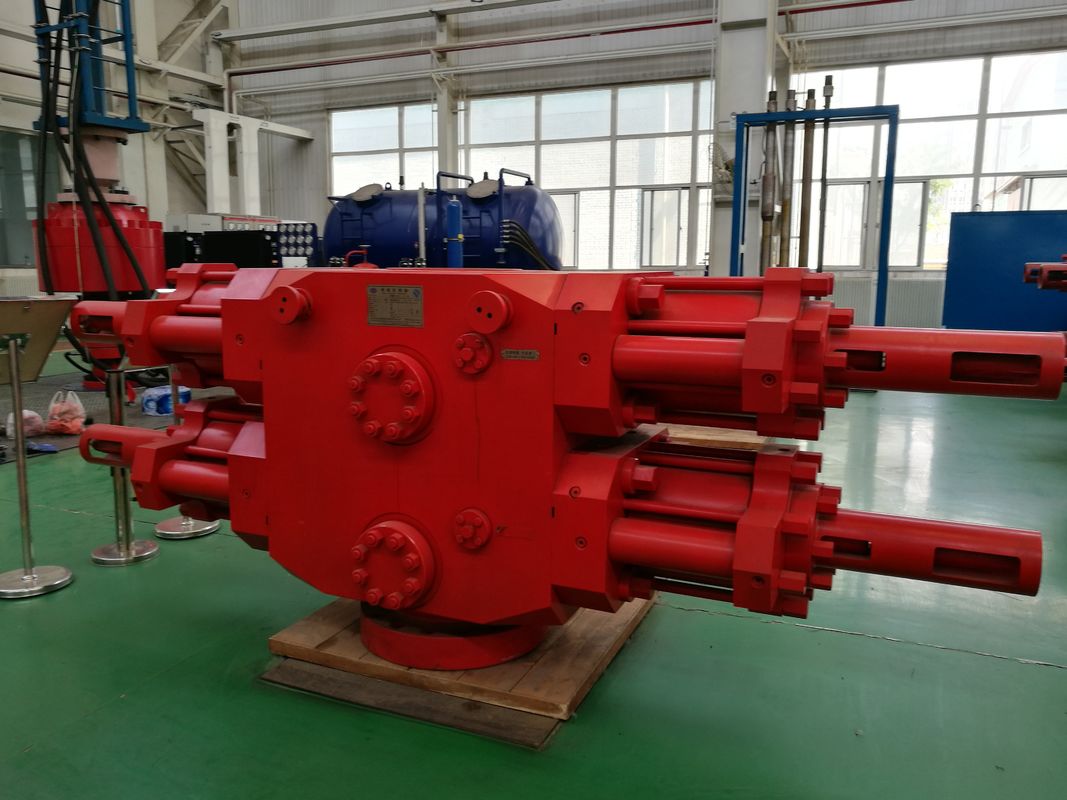

High Pressure Oil / Gas Double Ram Bop 35Mpa Well Control
This is a subpar blowout preventer consisting of three types: ordinary, universal, and rotating. The ordinary BOP ram, both semi-closed and fully closed, can seal the entire wellhead, while a semi-closed wellhead annular cross-section of the drill pipe remains. The universal BOP can activate in emergencies and handle drills and empty wells of any size. The rotating BOP sprays the sides during drilling operations. In addition to the two standard BOPs, a Universal BOP and rotating BOP are often installed in combination at the wellhead for deep drilling.
Dual Ram Bop Specification
| Model |
Gals to Open (1 set) |
Gals to Close (1 set) |
Closing Ratio | Assembly Dimension (in) | Approx Weight(lb) | ||||||
| Length (L) | Width (W) | Height (H) | |||||||||
| Flg×Flg | Std×Std | Flg×Std | Flg×Flg | Std×Std | Flg×Std | ||||||
| 4 1/16″-20,000psi(Single RS-FS) | 1.10 | 1.13 | 10.1 | 70.71 | 26.97 | 33.27 | 18.11 | 23.82 | 3491 | 3147 | 3319 |
| 4 1/16″-20,000psi(Double RS-FS) | 1.10 | 1.13 | 10.1 | 70.71 | 26.97 | 46.30 | 31.14 | 36.85 | 5742 | 5398 | 5570 |
| 7 1/16″-20,000psi(Single RS-FS) | 7.05 | 7.26 | 13.7 | 112.05 | 38.27 | 48.03 | 24.02 | 35.83 | 10891 | 8951 | 9921 |
| 7 1/16″-20,000psi(Double RS-FS) | 7.05 | 7.26 | 13.7 | 112.05 | 38.27 | 70.87 | 47.24 | 59.06 | 19826 | 17886 | 18812 |
| 11″-20,000psi(Single RS-FS) | 42.90 | 44.8 | 13.2 | 137.40 | 47.87 | 62.60 | 32.68 | 47.64 | 24030 | 19335 | 21682 |
| 11″-20,000psi(Double RS-FS) | 42.9 | 44.8 | 13.2 | 137.40 | 47.87 | 90.55 | 60.63 | 75.59 | 41987 | 37291 | 39639 |
| 18 3/4″-20,000psi(Double RS-FS) | 122 | 133 | 10.6 | 183.46 | 66.69 | / | / | 94.13 | / | / | 87083 |
Dual Ram Bop Feature
1) Shape Generally, the BOP body is similar to a square, in the middle there is a vertical bore through which the pipes
can pass and the ram cavities in which the ram moves in the horizontal direction.
2)Connection types The three connection types are studded, flange, and clamped top and bottom connections. The sizes of flanges, bolts, clamps, and ring grooves all conform to API standards.
