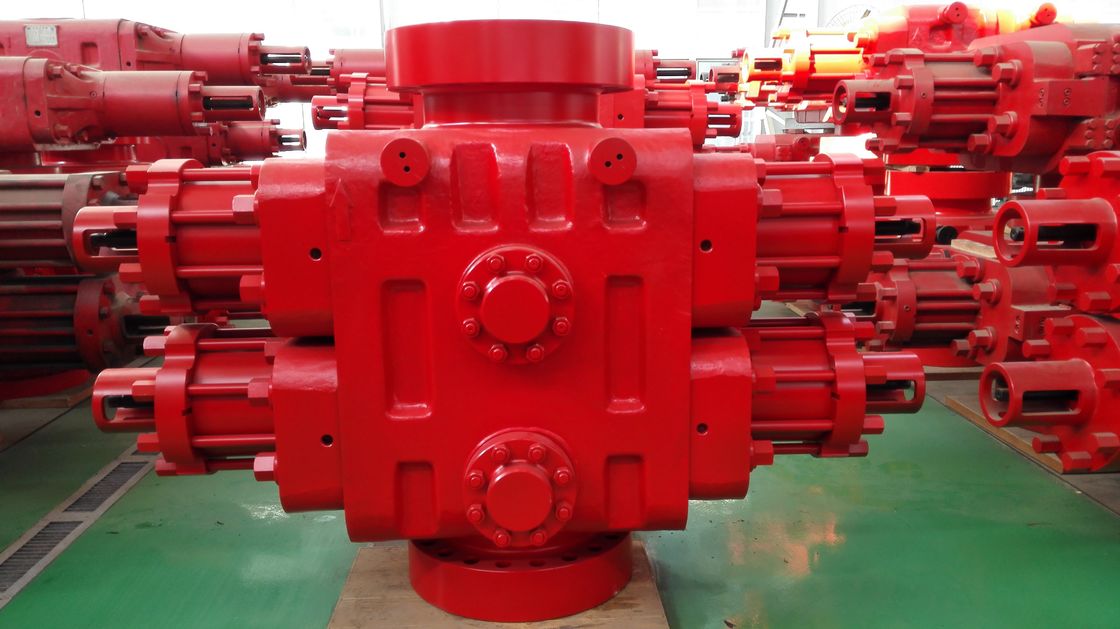

7 1/16 Inch Dual Ram Blow Out Preventer Bop In Oil Drilling
A blowout preventer (BOP) is a crucial safety device used in oil drilling. It is installed at the wellhead casing head and is responsible for controlling high-pressure oil, gas, and water blowouts. When the pressure of oil and gas is extremely high, the blowout preventer (BOP) can close the wellhead. The BOP contains four valves, which can be activated by injecting mud into the borehole. This increases the pressure of the drilling fluid column, suppressing high-pressure oil and gas that would otherwise discharge from the drill pipe and maintaining a stable heavy mud pressure.
Dual Ram Blow Out Preventer Bop Paremeter
Model |
Gals to Open (1 set) |
Gals to Close (1 set) |
Closing Ratio | Assembly Dimension (in) | Approx Weight(lb) | ||||||
Length (L) | Width (W) | Height (H) | |||||||||
Flg×Flg | Std×Std | Flg×Std | Flg×Flg | Std×Std | Flg×Std | ||||||
4 1/16″-20,000psi(Single RS-FS) | 1.10 | 1.13 | 10.1 | 70.71 | 26.97 | 33.27 | 18.11 | 23.82 | 3491 | 3147 | 3319 |
4 1/16″-20,000psi(Double RS-FS) | 1.10 | 1.13 | 10.1 | 70.71 | 26.97 | 46.30 | 31.14 | 36.85 | 5742 | 5398 | 5570 |
7 1/16″-20,000psi(Single RS-FS) | 7.05 | 7.26 | 13.7 | 112.05 | 38.27 | 48.03 | 24.02 | 35.83 | 10891 | 8951 | 9921 |
7 1/16″-20,000psi(Double RS-FS) | 7.05 | 7.26 | 13.7 | 112.05 | 38.27 | 70.87 | 47.24 | 59.06 | 19826 | 17886 | 18812 |
11″-20,000psi(Single RS-FS) | 42.90 | 44.8 | 13.2 | 137.40 | 47.87 | 62.60 | 32.68 | 47.64 | 24030 | 19335 | 21682 |
11″-20,000psi(Double RS-FS) | 42.9 | 44.8 | 13.2 | 137.40 | 47.87 | 90.55 | 60.63 | 75.59 | 41987 | 37291 | 39639 |
18 3/4″-20,000psi(Double RS-FS) | 122 | 133 | 10.6 | 183.46 | 66.69 | / | / | 94.13 | / | / | 87083 |
Dual Ram Blow Out Preventer Bop Feature
1) Shape Generally, the BOP body is similar to a square, in the middle there is vertical bore through which the pipes
can pass and the ram cavities in which the ram move in the horizontal direction.
2)Connection types The three connection types are studded, flange, clamped top and bottom connections. The sizes of flanges, bolts, clamps and ring grooves all conform to API standards.
