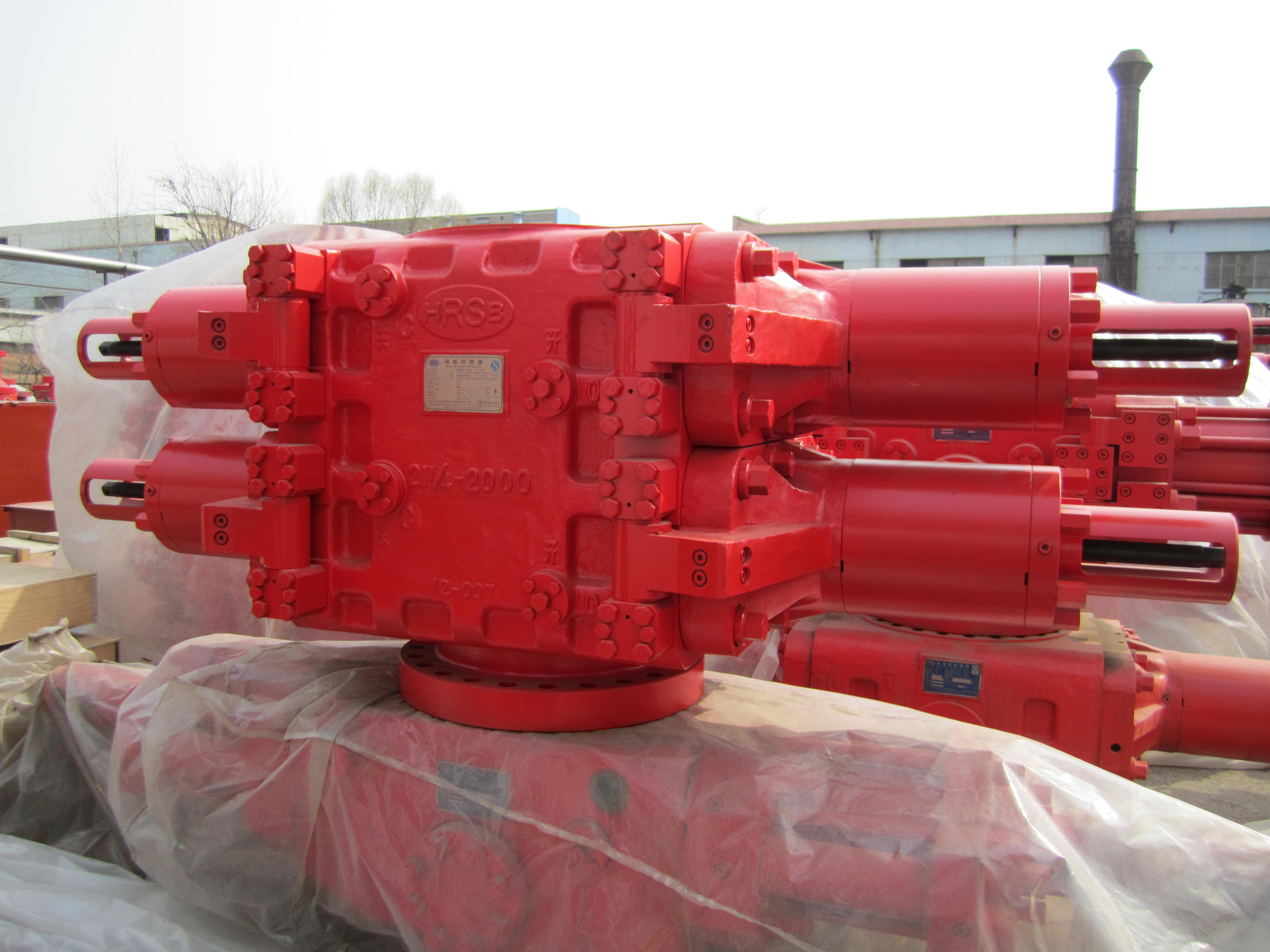

Hydraulic Double Ram Blow Out Preventer 18 3/4 Inch For Drilling

1 set
MOQ
USD 30000 set
Price
Hydraulic Double Ram Blow Out Preventer 18 3/4 Inch For Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Double Ram Blow Out Preventer
Size: 18 3/4 Inch
Pressure: 20,000psi
Gals To Open (1 Set): 122
Gals To Close (1 Set): 133
Type: Hydraulic
Highlight:

Blow Out Preventer 18 3/4 Inch

,

Hydraulic Double Ram Blow Out Preventer

,

Drilling Double Ram Bop

Basic Infomation
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 16A
Model Number: 18 3/4″
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

Hydraulic Double Ram Blow Out Preventer 18 3/4 Inch



Double Ram Blow Out Preventer  is an important component assembly of well control devices. It is characterized by the flexible switch, easy operation, safety in use and simple maintenance, etc.



Structural features



For a double-faced ram, both faces of the ram are symmetrical. For different sizes of drilling tools, only rubber seal semi-ring and ram briquetting need to be replaced, and other parts can be used interchangeably; the single-faced ram is not reversible; shear ram can cut off wellhead drilling tools and fully seal wellhead;



Paremeters of Double Ram Blow Out Preventer



Model

Gals to Open

(1 set)

Gals to Close

(1 set)

Closing Ratio Assembly Dimension (in) Approx Weight(lb)
Length (L) Width (W) Height (H)
Flg×Flg Std×Std Flg×Std Flg×Flg Std×Std Flg×Std
4 1/16″-20,000psi(Single RS-FS) 1.10 1.13 10.1 70.71 26.97 33.27 18.11 23.82 3491 3147 3319
4 1/16″-20,000psi(Double RS-FS) 1.10 1.13 10.1 70.71 26.97 46.30 31.14 36.85 5742 5398 5570
7 1/16″-20,000psi(Single RS-FS) 7.05 7.26 13.7 112.05 38.27 48.03 24.02 35.83 10891 8951 9921
7 1/16″-20,000psi(Double RS-FS) 7.05 7.26 13.7 112.05 38.27 70.87 47.24 59.06 19826 17886 18812
11″-20,000psi(Single RS-FS) 42.90 44.8 13.2 137.40 47.87 62.60 32.68 47.64 24030 19335 21682
11″-20,000psi(Double RS-FS) 42.9 44.8 13.2 137.40 47.87 90.55 60.63 75.59 41987 37291 39639
18 3/4″-20,000psi(Double RS-FS) 122 133 10.6 183.46 66.69 / / 94.13 / / 87083



Double Ram Blow Out Preventer Feature



1- The combined hinge seat type makes it convenient to maintain and disassemble the product.

2- Stainless plates and screws lock the shaft sealing parts to ensure reliable sealing.

3- The reinforced rubber material of the seal ring on the side gate guarantees its lifespan and reliable seal.

4- The ram structure allows for easy switching of the rubber core and fore rubber core. The floating top rubber core increases the seal's reliability. A leading block mounted on the front of the ram assembly provides automatic centering for the drilling tools.

Additionally, the horizontal secondary seal equipment of the side gate piston rod and sealing leakage hole ensures not only the exchangeability of the side gate, but also facilitates leakage checking and secondary sealing operations.
