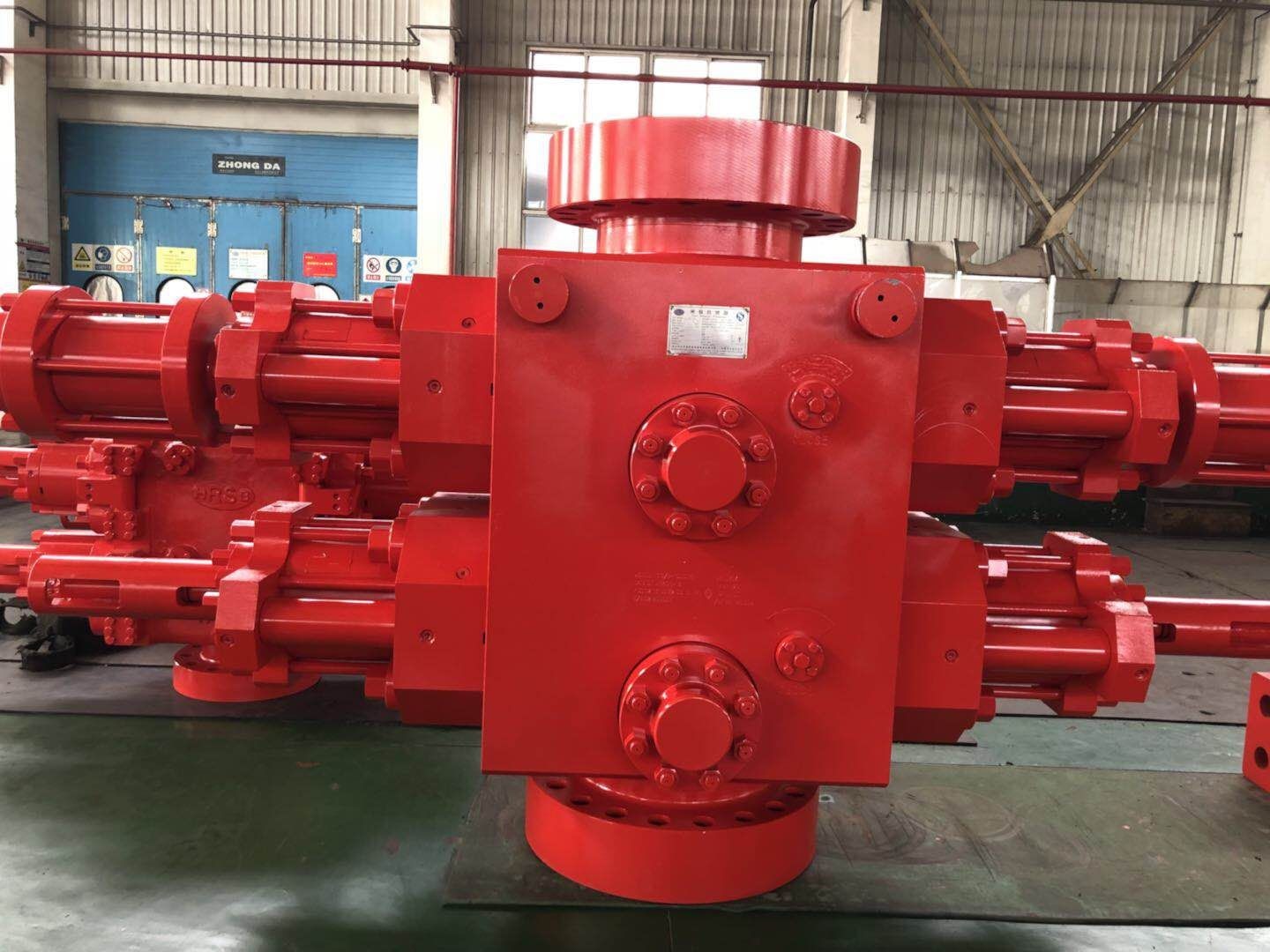

API 7 1/16 inch 3000psi Double Ram Bop Well Drilling Control Equipment

API 7 1/16 inch 3000psi Double Ram Bop Well Drilling Control Equipment
API 7 1/16 inch 3000psi Double Ram Bop Well Drilling Control Equipment

Large Image :  API 7 1/16 inch 3000psi Double Ram Bop Well Drilling Control Equipment

Product Details:
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 16A
Model Number: 2FZ18-21
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30000 set
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Contact Now

API 7 1/16 inch 3000psi Double Ram Bop Well Drilling Control Equipment

Description
Name: Double Ram Bop Size: 7 1/16 Inch
Pressure: 3000psi Model: 2FZ18-21
Standard: API 16 A Usage: Well Drillig Control Equipment
Highlight:

3000psi Double Ram Bop

,

7 1/16 Inch Double Ram Bop

,

Bop Well Drilling Control Equipment

API 7 Double Ram Bop Well Drillig Control Equipment



The hydraulic Double Ram Bop is a vital component of well drilling control equipment. It boasts features such as rapid opening, labor-saving operation, ease of maintenance, and safety.

The Double Ram Bop comprises a housing, side gate, hydro-cylinder, cylinder cap, piston, piston rod, lock shaft, sealing parts, and ram. The hydraulic force drives the piston rod and piston to move the ram, which can both seal and open the oil well.


Ram Bop Paremeter



Model

Gals to Open

(1 set)

Gals to Close

(1 set)

 Closing Ratio Assembly Dimension (in) Approx Weight(lb)
Length (L) Width (W) Height (H)
Flg×Flg Std×Std Flg×Std Flg×Flg Std×Std Flg×Std
4 1/16″-20,000psi(Single RS-FS) 1.10 1.13 10.1 70.71 26.97 33.27 18.11 23.82 3491 3147 3319
4 1/16″-20,000psi(Double RS-FS) 1.10 1.13 10.1 70.71 26.97 46.30 31.14 36.85 5742 5398 5570
7 1/16″-20,000psi(Single RS-FS) 7.05 7.26 13.7 112.05 38.27 48.03 24.02 35.83 10891 8951 9921
7 1/16″-20,000psi(Double RS-FS) 7.05 7.26 13.7 112.05 38.27 70.87 47.24 59.06 19826 17886 18812
11″-20,000psi(Single RS-FS) 42.90 44.8 13.2 137.40 47.87 62.60 32.68 47.64 24030 19335 21682
11″-20,000psi(Double RS-FS) 42.9 44.8 13.2 137.40 47.87 90.55 60.63 75.59 41987 37291 39639
18 3/4″-20,000psi(Double RS-FS) 122 133 10.6 183.46 66.69 / / 94.13 / / 87083



Ram Bop Feature



1) Shape Generally, the BOP body is similar to a square, in the middle there is a vertical bore through which the pipes

can pass and the ram cavities in which the ram moves in the horizontal direction.
2)Connection types The three connection types are studded, flange, and clamped top and bottom connections. The sizes of flanges, bolts, clamps, and ring grooves all conform to API standards.
