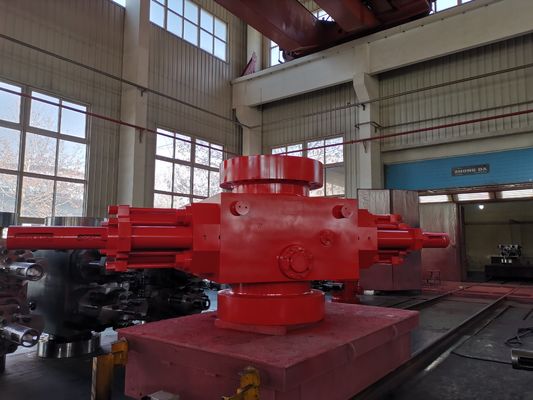

7 1/16" 3000 Psi Single Ram Bop Blowout Prevention System
Brief introduction of Single Ram Bop
The Single Ram Bop Blowout Prevention System provides a stable and convenient support for driving the screw pump.
Rams and ram rods are nitrated to prevent wear and tear.
Special rams have an offset, which enhances their forced centering.
Rubber ram seals are designed for easy maintenance and replacement in the field.
Locking devices were added to the preventer's design for a more even closure of the rams.
Parameter of 7 1/16"-3,000 psi Bop Blowout Prevention System
| Model | Casting, Manual Lock |
| Bore size | 7 1/16" |
| Working pressure | 3000 psi |
| Recommended operation pressure | 200-1500psi |
| Oil volume for opening one set of ram | 3.2L |
| Oil volume for closing one set of ram | 4L |
| Closing ratio | 4:1 |
| Top connection | Studded or Flanged |
| Bottom connection | Studded or Flanged |
| Interface thread of port | NPT 1 |
| Metalic material temperature rating | T20/250 |
| Non-metallic material temperature rating | BAB |
| Performance level | PR2 |
| Standard | API 16A, NACE MR0175 |
| Dimension | 1190*385*334 |
| Weight | 410KG |
BOP Drawing
Competitive Advantages
Who we are
Hebei Pantu Machinery Equipment Co., Ltd. is a comprehensive international company integrating production, sales and trading. The main products are well-control equipment such as BOP, Choke and Kill Manifold, Koomey Umit (BOP Control System), High-Pressure Hose, Mud Cross, Spacer Spool, DSA, and all kinds of valves and spares etc.
Note:
The design and manufacturing of BOP are subject to API Spec 16A specification.
The parts contacting with well fluid within BOP shall be able to resist hydrogen sulfide stress corrosion and all metallic parts contacting with well fluid meet the requirements of NACE MR-01-75/ISO15156.
