API 16A 11inch Single Ram Bop Shaffer Type For Oil Control

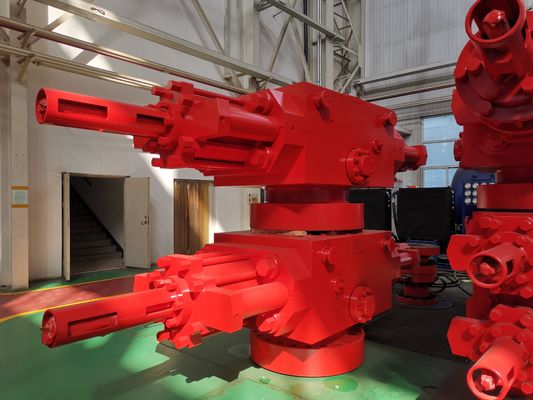

Large Image : API 16A 11inch Single Ram Bop Shaffer Type For Oil Control

Product Details:

Place of Origin:	China
Brand Name:	Cameron/Shaffer/Rongsheng/Shenkai
Certification:	API 16A
Model Number:	FZ28-105

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 25000 set
Packaging Details:	Iron Case
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	5 sets per 3 months

Contact Now

API 16A 11inch Single Ram Bop Shaffer Type For Oil Control

Description

Name:	Single Ram Bop	Size:	11INCH
Usage:	Oil Control	Hydraulic Controlled Rated Working Pressure (MPa/psi):	21/3,000
Recommended Hydraulic Working Pressure Seal Pipe (MPa/psi):	1200~1500psi	Type:	Shaffer Type
Highlight:	Shaffer Type Drilling Blowout Preventer , API 16A Single Ram Bop , Oil Control Single Ram Bop

API 16 A Single Ram Bop Shaffer Type For Oil Control

Bop Blowout Preventer Introduction

The main bearing parts, such as the shell, are made of high-strength, high-toughness forging alloy steel to ensure safety during operations.
The BOP has a reliable sealing structure,
and the retainer is made of stainless steel to improve corrosion resistance.
The shell cavity of the ram blowout preventer is coated with nickel through chemical plating, which effectively enhances resistance to corrosion and abrasion.
The BOP is strictly produced in accordance with API Specification 16A.

(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limited in below list)

Item	Specification for Ram BOP
Size and model	7 1/16″ -3000psi	7 1/16″ -5000psi	7 1/16″ -100000psi	9″- 3000psi	9″ -5000psi	11″ -3000psi	11″ -5000psi	11″ -10000psi	13 5/8″ -3000psi	13 5/8″ -5000psi	13 5/8″ -10000psi	20 3/4″ -3000psi	21 1/4″ -5000psi	26 3/4” -3000psi
Bore (mm/in.)	179.4	179.4	179.4	228.6	228.6	279.4	279.4	279.4	346.1	346.1	346.1	527	539.8	679.4
Bore (mm/in.)	7 1/16	7 1/16	7 1/16	9	9	11	11	11	13 5/8	13 5/8	13 5/8	20 3/4	21 1/4	26 3/4
Rated working pressure (MPa/psi)	21	35	70	21	35	21	35	70	21	35	70	21	35	21
Rated working pressure (MPa/psi)	3,000	5,000	10,000	3,000	5,000	3,000	5,000	10,000	3,000	5,000	10,000	3,000	5,000	3,000
Hydrostatic pressure testing pressure (MPa/psi)	31.5	52.5	105	31.5	52.5	31.5	52.5	105	31.5	52.5	105	31.5	70	31.5
Hydrostatic pressure testing pressure (MPa/psi)	4,500	7,500	15,000	4,500	7,500	4,500	7,500	15,000	4,500	7,500	15,000	4,500	10,000	4,500
Hydraulic controlled rated working pressure (MPa/psi)	21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi)	1218~1522psi
Volume for open one set rams										36 L
Volume for close one set rams										40 L
Outlet of hydraulic oil	NPT 1”
Temperature grade of metal	T-20/250(-29℃～121℃)
Temperature grade of non-metal	BAB (-18℃~66℃~93℃)
Medium material contacting with well liquid	Per to NACE MR-01-75, meet API 16A 4th Edition Standard
