Home /Products/Annular Blowout Preventer/13 5/8" High Pressure Hydril Annular Bop For Petroleum And Natural Gas

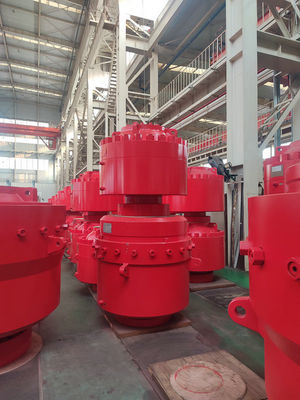

13 5/8" High Pressure Hydril Annular Bop For Petroleum And Natural Gas

1 set
MOQ
USD 30000 set
Price
13 5/8" High Pressure Hydril Annular Bop For Petroleum And Natural Gas
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Hydril Annular Bop
Size: 13 5/8"
Pressure: 10000 Psi
Advantage: High Pressure
Standard: API 16A
Application: Petroleum, Natural Gas
Highlight:

Petroleum Hydril Blowout Preventer

,

13 5/8" Hydril Annular Bop

,

Natural Gas Hydril Annular Bop
Basic Infomation
Place of Origin: China
Brand Name: Shenkai
Certification: API 16A
Model Number: 13 5/8"-10000psi
Payment & Shipping Terms
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 5 sets per 3 months
Product Description

346.1mm 13 5/8 Inch Hydril Annular Bop High Pressure



We offer two types of BOP: Annular BOP and Ram BOP.
The Annular BOP is designed and manufactured according to API 16A standards.
It is operated by a hydraulic control system and features a packing element that is either spherical or tapered.
This element has a large storage volume, low operation pressure, and excellent sealing function.



hydril annular bop specifications



(We can provide the BOP: bore size from 7 1/16” to 30”, pressure from 500psi to 20000psi, Not limiting in the below list)



Item Specification for Annular BOP
Size and model

7 1/16″

-3000psi

7 1/16″

-5000psi

9″

-3000psi

9″

-5000psi

11″

-3000psi

11″

-5000psi

13 5/8″

-3000psi

13 5/8″

-5000psi

20 3/4″

-3000psi

21 1/4″

-5000psi
Bore (mm/in.)

179.4

7 1/16

179.4

7 1/16

228.6

9

228.6

9

279.4

11

279.4

11

346.1

13 5/8

346.1

13 5/8

527

20 3/4

539.8

21 1/4
Rated working pressure (MPa/psi)

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000

21

3,000

35

5,000
Hydrostatic pressure testing pressure (MPa/psi)

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

42

6,000

70

10,000

31.5

4,500

70

10,000
Hydraulic-controlled rated working pressure (MPa/psi) 21/3,000
Recommended hydraulic working pressure seal pipe (MPa/psi) 1,218～1,522psi
Max. working pressure seal well without a pipe in (MPa/psi)

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500

10.5

1,500

17.5

2,500
Recommended hydraulic working pressure seal well without a pipe in (MPa/psi) ≤10 .5/1,500
Open Max. oil volume (L) 15 15 22.8 33 39 56 69 69 110 181
Close Max. oil volume (L) 21 21 34 42 50 72 94 94 173 241
Lift weight by two lifting rings (t) 16 16 16 25 25 25 32 32 32 64
The outlet of hydraulic oil NPT 1”
Temperature grade of metal T-20/250(-29℃～121℃)
Temperature grade of non-metal BAB (-18℃~66℃~93℃)
Medium material contact with well liquid Per to NACE MR-01-75, meet API 16A 4th Edition Standard



Our Service :



We do everything to enable the clients to get more benefits and to seek more business opportunities in the market. We promise to create more value for you and society.
We must develop new technologies and new products for our clients, and make our popularity on a high level in this field; we must heighten our position and set a good example in the field. A group of experienced staff is ready to serve you with enthusiasm at any moment!
