API 16 A Standard 7 1/16 inch 3000psi Double Ram Bop TFI Tonsand Shaffer Cameron Type

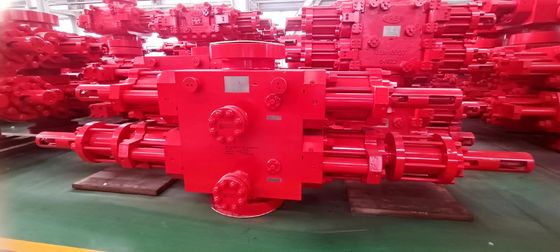

Large Image : API 16 A Standard 7 1/16 inch 3000psi Double Ram Bop TFI Tonsand Shaffer Cameron Type

Product Details:

Place of Origin:	China
Brand Name:	Hebei Pantu
Certification:	API 16A
Model Number:	2FZ18-21

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 30000 set
Packaging Details:	Iron Case
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	5 sets per 3 months

Contact Now

API 16 A Standard 7 1/16 inch 3000psi Double Ram Bop TFI Tonsand Shaffer Cameron Type

Description

Name:	Double Ram Bop	Size:	7 1/16 Inch
Pressure:	3000psi	Model:	2FZ18-21
Standard:	API 16 A	Usage:	Well Drillig Control Equipment
Highlight:	Cameron Type Double Ram Bop , 3000psi Double Ram Bop

API 16A Double Ram Bop Well Drillig Control Equipment shaffer type,cameron type,townsend TFI.

The hydraulic Double Ram Bop is a vital component of well drilling control equipment. It boasts features such as rapid opening, labor-saving operation, ease of maintenance, and safety.

The Double Ram Bop comprises a housing, side gate, hydro-cylinder, cylinder cap, piston, piston rod, lock shaft, sealing parts, and ram. The hydraulic force drives the piston rod and piston to move the ram, which can both seal and open the oil well.

Ram Bop Paremeter

Model	Gals to Open (1 set)	Gals to Close (1 set)	Closing Ratio	Assembly Dimension (in)					Approx Weight(lb)
				Length (L)	Width (W)	Height (H)			Approx Weight(lb)
				Length (L)	Width (W)	Flg×Flg	Std×Std	Flg×Std	Flg×Flg	Std×Std	Flg×Std
4 1/16″-20,000psi(Single RS-FS)	1.10	1.13	10.1	70.71	26.97	33.27	18.11	23.82	3491	3147	3319
4 1/16″-20,000psi(Double RS-FS)	1.10	1.13	10.1	70.71	26.97	46.30	31.14	36.85	5742	5398	5570
7 1/16″-20,000psi(Single RS-FS)	7.05	7.26	13.7	112.05	38.27	48.03	24.02	35.83	10891	8951	9921
7 1/16″-20,000psi(Double RS-FS)	7.05	7.26	13.7	112.05	38.27	70.87	47.24	59.06	19826	17886	18812
11″-20,000psi(Single RS-FS)	42.90	44.8	13.2	137.40	47.87	62.60	32.68	47.64	24030	19335	21682
11″-20,000psi(Double RS-FS)	42.9	44.8	13.2	137.40	47.87	90.55	60.63	75.59	41987	37291	39639
18 3/4″-20,000psi(Double RS-FS)	122	133	10.6	183.46	66.69	/	/	94.13	/	/	87083

Ram Bop Feature

1) Shape Generally, the BOP body is similar to a square, in the middle there is a vertical bore through which the pipes

can pass and the ram cavities in which the ram moves in the horizontal direction.
2)Connection types The three connection types are studded, flange, and clamped top and bottom connections. The sizes of flanges, bolts, clamps, and ring grooves all conform to API standards.
