High Pressure AA-HH Material Grade Christmas Tree for Anti-corrosion Wellhead and Drilling Diverter API 6A Standard

Production Description:

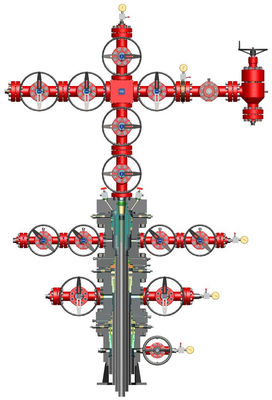

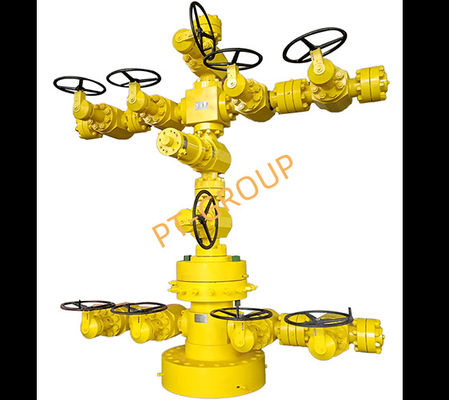

Wellhead equipment and Christmas tree in oil and gas:

Wellhead equipment and oil (gas) tree equipment are important equipment for oil and gas exploitation. Our wellhead equipment and gas tree equipment are designed and manufactured in strict accordance with the latest version of API 6A standard, GB/T22513 specification and NACE MR-0175 standard. The products are mainly composed of casing head assembly, casing four-way assembly, tubing four-way assembly and gas tree assembly. The company can produce conventional oil (gas) wellhead devices, and can also design and manufacture wellhead devices for special purposes and special structures such as oil testing and fracturing according to user requirements.

The wellhead equipment and tree manufactured by the company have obtained API 6A product certification, TS certification of special equipment, and passed the wellhead equipment production capacity assessment of Norges Verdage Society. 15,000psi gate valves and safety valves have completed PR2 performance evaluation tests in the National wellhead equipment testing Center.

The company provides a complete range of API 6A standard requirements of wellhead equipment and oil (gas) tree products, including diameter 2 1/16in ~ 7 1/16in, working pressure 2000psi ~ 15000psi, temperature range L ~ U, material level AA ~ HH, product specification level PSL1 ~ PSL3G, Performance requirements PR1 to PR2.

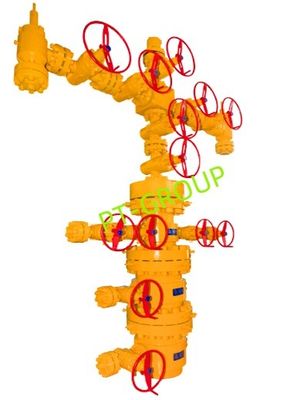

Integrated tree structure features: The -Y-shaped integrated design has a compact structure, fewer connection parts make the leakage point reduced, more safe and reliable, and easy to assemble and maintain.

Fast and convenient installation, high safety;

Compact structure, good sealing performance, small occupying space;

Main channel 135° Angle design, flow resistance is small, reduce the damage of fluid erosion;

· Angle flange design, easy to operate in well.

Main technical parameters: Working pressure :35MPa~105MPa Temperature range: -46℃~121℃ (LU) Material level: AA,BB,CC,DD,EE,FF,HH Product specification level: PSL1~PSL3G Performance level: PR1~PR2
