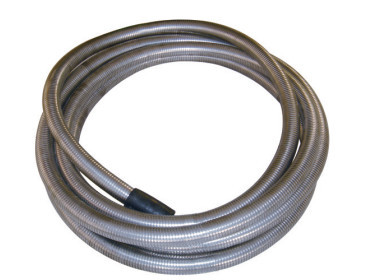

Well Control Professional Tube BOP Control Line ——GNG High-pressure Fire-resistant and Heat-insulation Hose Assembly
1" 5000psi Hige Pressure Fire Resistance Hose, Armored, With Union
1, Scope of application:the hose for well control-GNG high-pressure,fire-resistant and heat-insulation hose assembly is mainly used for the hydraulic control of the BOP for drilling and for hydraulic transmission at high-temperature and flammable places in the metallurgic industry.
2,Product classification:high molecular polymer jacket type, stainless steel armored jacket type and braided stainless steel wire jacket type.
3,Applicable Standard:API Spec 16D
Specification for hose and indices for technical properties
| Nominal | Outerdia.of | Operating | Min.burst | Min.bending | Thread | Operatingtime(min)with | |
| Normal | Limit | ||||||
| 19 | 44 | 35 | 105 | 280 | NPT LP |
5 | 25 |
| 50 | 70 | 175 | |||||
| 22 | 47 | 35 | 105 | 320 | |||
| 53 | 70 | 175 | |||||
| 25 | 50 | 35 | 105 | 360 | |||
| 56 | 70 | 175 | |||||
| 31.5 | 56 | 35 | 105 | 460 | |||
| 62 | 70 | 175 | |||||
| 38 | 63 | 35 | 105 | 560 | |||
| 69 | 70 | 175 | |||||
