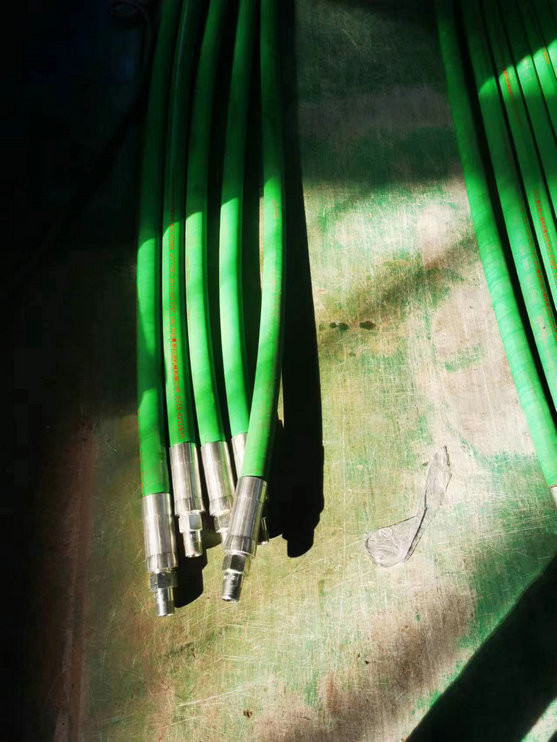

High Temperature Resistant BOP Control Hose 19mm 22mm
BOP Control Hose Application
Blow-out preventer (BOP) systems requiring high pressure, high temperature and flame resistant control lines certified to API 16D.
Armored hose assemblies with flame-resistant cover withstand a minimum 1300°F (+700°C) flame temperature at working pressure for 5 minutes without failure.
BOP Control Hose Specification
|
Nominal inner dia.(mm) |
Outer dia.of hose assembly (mm) |
Operating pressure (MPa) |
Min.burst pressure (MPa) |
Min. bending radius(mm) |
Thread |
Operating time (min)with fire-resisting at 750℃ |
|
| Normal | Limit | ||||||
| 19 | 44 | 35 | 105 | 280 |
BNPT LP |
O5 |
25 |
| 50 | 70 | 175 | |||||
| 22 | 47 | 35 | 105 | 320 | |||
| 53 | 70 | 175 | |||||
| 25 | 50 | 35 | 105 | 360 | |||
| 56 | 70 | 175 | |||||
| 31.5 | 56 | 35 | 105 | 460 | |||
| 62 | 70 | 175 | |||||
| 38 | 63 | 35 | 105 | 560 | |||
| 69 | 70 | 175 | |||||
Our Advantage:
1). Advanced production equipment
2). ISO 14000 / ISO 9000 / Quality certificate
3). Strict quality inspection, Strong R&D team
4). Environmental friendly without pollution
5). Many years of manufacturing experience, strong and experienced export team
