1" 5000psi Armored Drilling Hose With 304 Stainless Cover Hammer Union Connection

1" 5000psi Armored Drilling Hose With 304 Stainless Cover Hammer Union Connection
1" 5000psi Armored Drilling Hose With 304 Stainless Cover Hammer Union Connection

Large Image :  1" 5000psi Armored Drilling Hose With 304 Stainless Cover Hammer Union Connection

Product Details:
Place of Origin: China
Brand Name: Hebei Jingbo
Certification: API 16D
Model Number: 1"-5000psi
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 100-1000 USD
Packaging Details: Iron case
Delivery Time: 7 days
Payment Terms: L/C,T/T
Supply Ability: 10 SET per month
Contact Now

1" 5000psi Armored Drilling Hose With 304 Stainless Cover Hammer Union Connection

Description
Name: BOP Control Hose Size: 1 Inch
Working Pressure: 5000psi Cover: Armored With 304 Stainless
Connection: Hammer Union API: API 16D Monogrammed
Fire: Fire Resistance Certificate: With COC
Highlight:

Stainless Cover Hammer Union Drilling Hose

,

5000psi Armored Drilling Hose

,

BOP Control Hose 1"

1" 5000psi Armored Drilling Hose With 304 Stainless Cover Hammer Union Connection
Product Overview

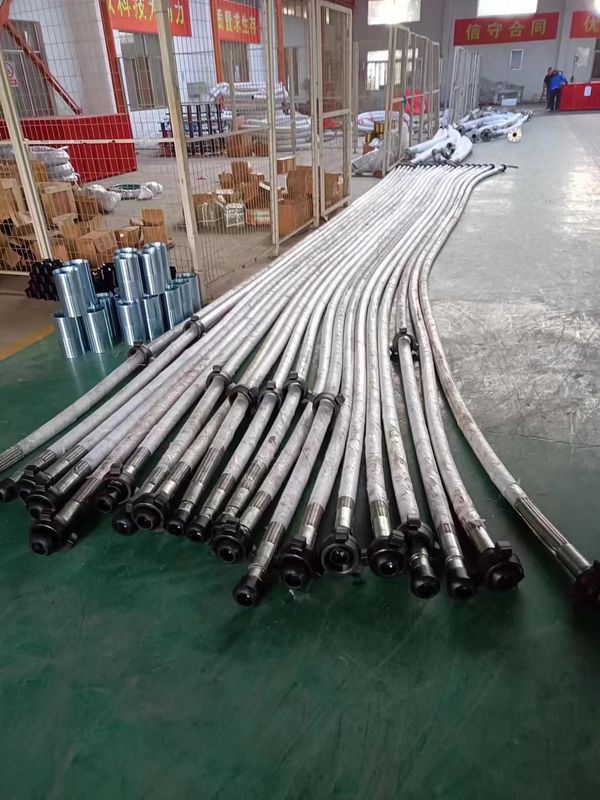

The 1" 5000 PSI Armored Drilling Hose delivers dependable performance in demanding oilfield applications. Its 304 stainless steel outer cover provides superior resistance against abrasion, corrosion, and harsh drilling environments. The robust armored design enhances durability under high-pressure cycles, while the hammer union connection (Fig 1502) ensures a secure and leak-free assembly. Manufactured to API standards, this hose offers excellent flexibility, fire resistance, and long service life, making it a reliable solution for drilling and well-control operations.

Key Features
  • High pressure resistance (up to 5000 psi)
  • Flame retardant and fire-resistant performance
  • Flexible structure with multi-layer reinforcement
  • Resistant to oil, heat, and abrasion
  • Suitable for both onshore and offshore drilling rigs
Technical Specifications
Nominal Bore (in) Outer Diameter (in) Working Pressure (psi) Test Pressure (psi) Minimum Burst Pressure (psi) Minimum Bending Radius (in) End Connection Operating Time (Normal / Emergency)
3/4" (19 mm) 1.73 - 1.97 5,000 7,500 15,000 11 NPT / LP 5 min / 25 min
7/8" (22 mm) 1.85 - 2.09 5,000 7,500 15,000 12.6 NPT / LP 5 min / 25 min
1" (25 mm) 1.97 - 2.20 5,000 7,500 15,000 14.2 NPT / LP 5 min / 25 min
1 1/4" (31.5 mm) 2.20 - 2.44 5,000 7,500 15,000 18.1 NPT / LP 5 min / 25 min
1 1/2" (38 mm) 2.48 - 2.72 5,000 7,500 15,000 22 NPT / LP 5 min / 25 min
Applications
  • Hydraulic control for BOP stacks
  • Drilling rigs (onshore / offshore)
  • Emergency well control systems
  • High-risk oilfield environments requiring flame resistance
Our Advantages
  • Proven experience in supplying BOP control hoses for major drilling contractors
  • Customizable hose length, pressure rating, and connections
  • Global logistics support and fast delivery
  • API / ISO certified production facilities
