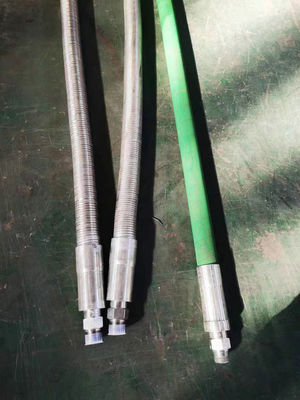

High Pressure Bop Control Hose Braided Stainless Steel Wire Hydraulic Hose Pipe

High Pressure Bop Control Hose Braided Stainless Steel Wire Hydraulic Hose Pipe
High Pressure Bop Control Hose Braided Stainless Steel Wire Hydraulic Hose Pipe

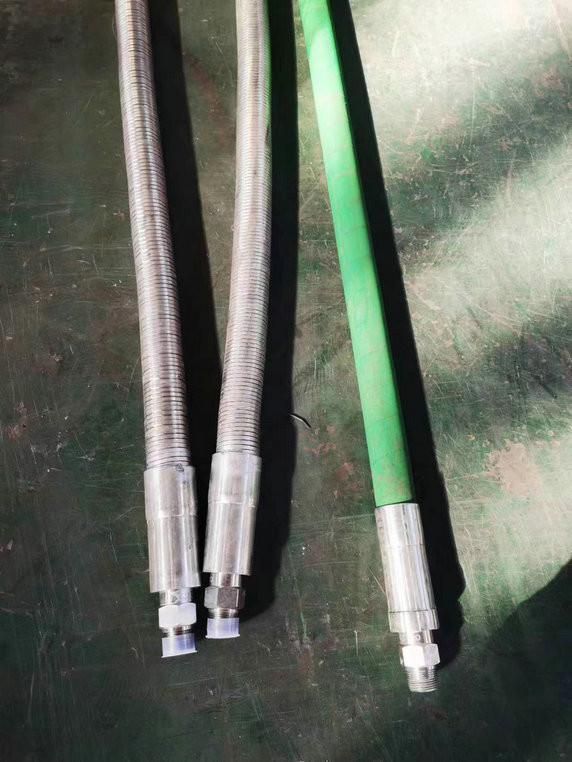

Large Image :  High Pressure Bop Control Hose Braided Stainless Steel Wire Hydraulic Hose Pipe

Product Details:
Place of Origin: China
Brand Name: Hebi Pantu
Certification: API 16D
Model Number: 1" 5000psi
Payment & Shipping Terms:
Minimum Order Quantity: 1 set 10m length
Price: USD 450 per set
Packaging Details: Iron Case
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 50 sets per 1 month
Contact Now

High Pressure Bop Control Hose Braided Stainless Steel Wire Hydraulic Hose Pipe

Description
Name: High Pressure Bop Control Hose Type: Braided Stainless Steel Wire Jacket Type
Thread: NPT LP Inner Dia: 19mm-38mm
Applicable Standard: API Spec 16D Usage: Hydraulic System
Highlight:

Stainless Steel Wire Bop Control Hose

,

Stainless Steel Wire Hydraulic Hose Pipe

,

Braided Hydraulic Hose Pipe

High Pressure Bop Control Hose Braided Stainless Steel Wire Hydraulic Hose Pipe
Product Overview
The High Pressure BOP Control Hose features braided stainless steel wire reinforcement for superior strength and pressure resistance. Designed specifically for blowout preventer hydraulic systems, this hose reliably transmits control fluids under extreme well control conditions. Its robust stainless steel construction provides excellent burst resistance while maintaining flexibility and vibration absorption for heavy-duty drilling applications. The fire-resistant outer layer offers protection against oil, abrasion, and harsh environmental conditions, ensuring long service life. Compliant with API 16D standards, this hose delivers safety and reliability for critical drilling operations.
Key Features
  • High pressure resistance (up to [insert psi rating])
  • Flame retardant and fire-resistant performance
  • Flexible structure with multi-layer reinforcement
  • Resistant to oil, heat, and abrasion
  • Suitable for both onshore and offshore drilling rigs
Technical Specifications
Nominal Bore (in) Outer Diameter (in) Working Pressure (psi) Test Pressure (psi) Minimum Burst Pressure (psi) Minimum Bending Radius (in) End Connection Operating Time (Normal / Emergency)
3/4" (19 mm) 1.73 - 1.97 5,000 7,500 15,000 11 NPT / LP 5 min / 25 min
7/8" (22 mm) 1.85 - 2.09 5,000 7,500 15,000 12.6 NPT / LP 5 min / 25 min
1" (25 mm) 1.97 - 2.20 5,000 7,500 15,000 14.2 NPT / LP 5 min / 25 min
1 1/4" (31.5 mm) 2.20 - 2.44 5,000 7,500 15,000 18.1 NPT / LP 5 min / 25 min
1 1/2" (38 mm) 2.48 - 2.72 5,000 7,500 15,000 22 NPT / LP 5 min / 25 min
Applications
  • Hydraulic control for BOP stacks
  • Drilling rigs (onshore / offshore)
  • Emergency well control systems
  • High-risk oilfield environments requiring flame resistance
Our Advantages
  • Proven experience in supplying BOP control hoses for major drilling contractors
  • Customizable hose length, pressure rating, and connections
  • Global logistics support and fast delivery
  • API / ISO certified production facilities
