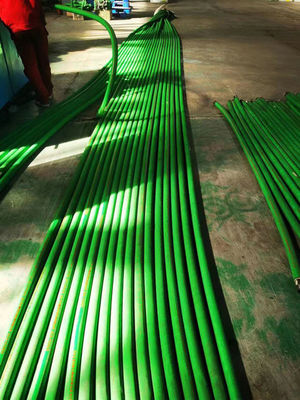

High Pressure Bop Control Hose High Molecular Polymer Jacket Type
1, Scope of application:the hose for well control-GNG high-pressure,fire-resistant and heat-insulation hose assembly is mainly used for the hydraulic control of the BOP for drilling and for hydraulic transmission at high-temperature and flammable places in the metallurgic industry.
2, Product classification:high molecular polymer jacket type, stainless steel armored jacket type and braided stainless steel wire jacket type.
3, Applicable Standard:API Spec 16D
Specification
| Nominal | Outerdia.of | Operating | Min.burst | Min.bending | Thread | Operatingtime(min)with | |
| Normal | Limit | ||||||
| 19 | 44 | 35 | 105 | 280 | NPT LP |
5 | 25 |
| 50 | 70 | 175 | |||||
| 22 | 47 | 35 | 105 | 320 | |||
| 53 | 70 | 175 | |||||
| 25 | 50 | 35 | 105 | 360 | |||
| 56 | 70 | 175 | |||||
| 31.5 | 56 | 35 | 105 | 460 | |||
| 62 | 70 | 175 | |||||
| 38 | 63 | 35 | 105 | 560 | |||
| 69 | 70 | 175 | |||||
Our Advantage:
1). Advanced production equipment
2). ISO 14000 / ISO 9000 / Quality certificate
3). Strict quality inspection, Strong R&D team
4). Environmental friendly without pollution
5). Many years of manufacturing experience, strong and experienced export team
