16-3/4" 2000 Psi Wellhead Flange Casing Spool Cross Mud Spool
The Casing Spool Cross Mud is very important equipment used in the drilling process, casing spool can control the wellhead pressure,casing spool is often flange-ended on the top of the casing head and connected with the bottom of the tubing head then become a part of the wellhead system of the oil well.
Casing Spool Cross Mud Parameters
| Top Flange | Bottom Flange | ||
| Size (inches) | Working Pressure (psi) | Size (inches) | Working Pressure (psi) |
| 11" | 2000 , 3000, 5000 | 11" | 2000, 3000 , 5000 |
| 13-5/8" | 2000 | 11" | 2000 , 3000, 5000 |
| 13-5/8" | 2000, 3000 , 5000 | ||
| 3000 | 11" | 3000 , 5000 | |
| 13-5/8" | 3000 , 5000 | ||
| 5000 | 11" | 5000,10000,15000 | |
| 13-5/8" | 5000,10000,15000 | ||
| 10000 | 11" | 5000,10000,15000 | |
| 13-5/8" | 5000,10000,15000 | ||
| 16-3/4" | 2000 | 11" | 2000 , 3000 |
| 13-5/8" | 2000 , 3000 , 5000 | ||
| 3000 | 11" | 3000 , 5000 | |
| 13-5/8" | 3000 , 5000 | ||
| 5000 | 11" | 5000,10000 | |
| 13-5/8" | 5000,10000 | ||
| 10000 | 11" | 10000 | |
| 13-5/8" | 10000 | ||
| 21-1/4" | 2000 | 13-5/8" | 2000 , 3000 , 5000 |
| 16-3/4" | 2000 , 3000 | ||
| 20-3/4" | 3000 | 13-5/8" | 3000 , 5000,10000 |
| 20-3/4" | 3000 | ||
| 21-1/4" | 5000 | ||
| 21-1/4" | 5000 | 13-5/8" | 5000,10000 |
| 16-3/4" | 5000 | ||
| 16-3/4" | 10000 | ||
Casing Spool Cross Mud FEATURES
1) Made from high-strength alloy and processed especially with heating treatment.
2) Designed and manufactured concerning API 6A technical specifications.
3) Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
4) All steel tanks are welded with stainless steel for long-term anti-corrosion.
5) Used for high-pressure drilling, in conjunction with a flat valve for preventing blowout and connecting BOP.

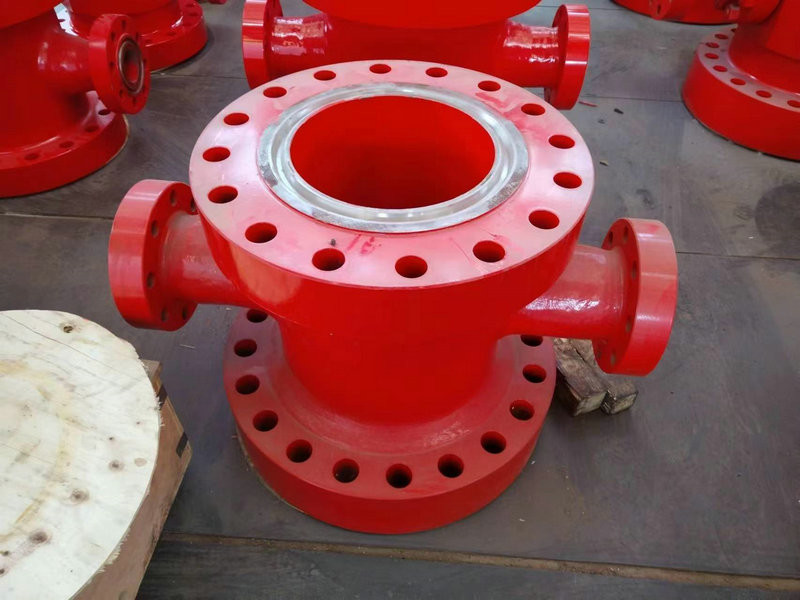

Casing Spool Cross Mud Pictures
