16 3/4 Inch 3000 Psi Drilling Spool Adapter Flange Wellhead
Drilling Spool Adapter Flange In oil drilling, a casing head is a simple metal flange welded or screwed onto the top of the conductor pipe (also known as drive-pipe) or the casing and forms part of the wellhead system for the well.
The Drilling Spool Adapter Flange , when installed, is typically tested to very strict pressure and leak-off parameters to insure viability under blowout conditions before any surface equipment is installed.
Drilling Spool Adapter Flange Parameters
Top Flange | Bottom Flange | ||
Size (inches) | Working Pressure (psi) | Size (inches) | Working Pressure (psi) |
11" | 2000 , 3000, 5000 | 11" | 2000, 3000 , 5000 |
13-5/8" | 2000 | 11" | 2000 , 3000, 5000 |
13-5/8" | 2000, 3000 , 5000 | ||
3000 | 11" | 3000 , 5000 | |
13-5/8" | 3000 , 5000 | ||
5000 | 11" | 5000,10000,15000 | |
13-5/8" | 5000,10000,15000 | ||
10000 | 11" | 5000,10000,15000 | |
13-5/8" | 5000,10000,15000 | ||
16-3/4" | 2000 | 11" | 2000 , 3000 |
13-5/8" | 2000 , 3000 , 5000 | ||
3000 | 11" | 3000 , 5000 | |
13-5/8" | 3000 , 5000 | ||
5000 | 11" | 5000,10000 | |
13-5/8" | 5000,10000 | ||
10000 | 11" | 10000 | |
13-5/8" | 10000 | ||
21-1/4" | 2000 | 13-5/8" | 2000 , 3000 , 5000 |
16-3/4" | 2000 , 3000 | ||
20-3/4" | 3000 | 13-5/8" | 3000 , 5000,10000 |
20-3/4" | 3000 | ||
21-1/4" | 5000 | ||
21-1/4" | 5000 | 13-5/8" | 5000,10000 |
16-3/4" | 5000 | ||
16-3/4" | 10000 |
Drilling Spool Adapter Flange FEATURES
1) Made from high-strength alloy and processed especially with heating treatment.
2) Designed and manufactured concerning API 6A technical specifications.
3) Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.

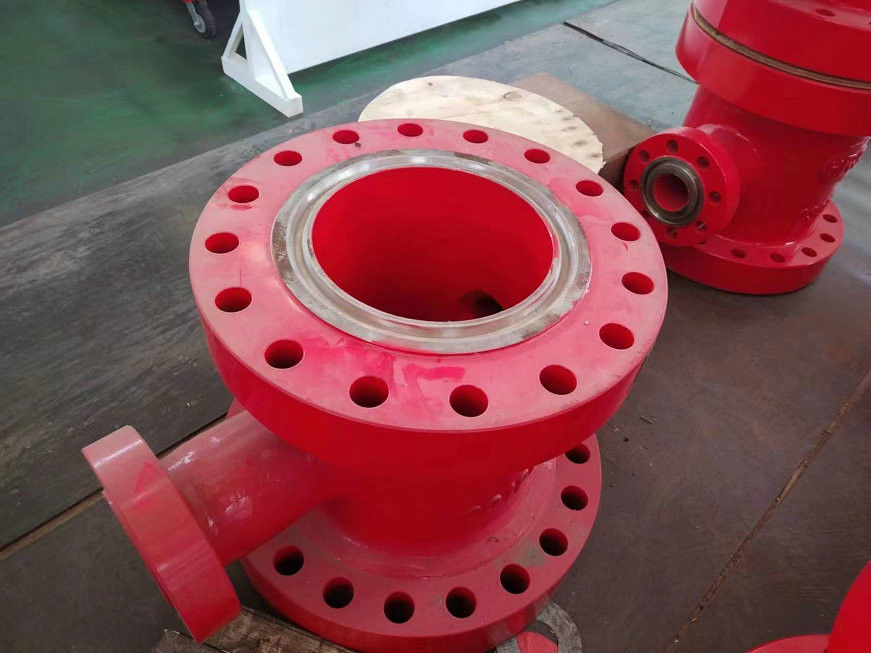

Drilling Spool Adapter Flange Pictures
