21 1/4" 5000 Psi Drilling Spacer Spools API Spec 16A Standard
Drilling Spacer Spools is the parts that are often used in the oilfield for wellhead extension, choke and kill manifold, etc. It is designed and manufactured in accordance with API 6A and API 17K standards, it usually has the same nominal end connections. The eternal company specializes in manufacturing all sizes and pressure ratings used for oilfield applications. So many spools have been applied on many oilfields all over the world.
Drilling Spacer Spools Parameters
Top Flange | Bottom Flange | ||
Size (inches) | Working Pressure (psi) | Size (inches) | Working Pressure (psi) |
11" | 2000 , 3000, 5000 | 11" | 2000, 3000 , 5000 |
13-5/8" | 2000 | 11" | 2000 , 3000, 5000 |
13-5/8" | 2000, 3000 , 5000 | ||
3000 | 11" | 3000 , 5000 | |
13-5/8" | 3000 , 5000 | ||
5000 | 11" | 5000,10000,15000 | |
13-5/8" | 5000,10000,15000 | ||
10000 | 11" | 5000,10000,15000 | |
13-5/8" | 5000,10000,15000 | ||
16-3/4" | 2000 | 11" | 2000 , 3000 |
13-5/8" | 2000 , 3000 , 5000 | ||
3000 | 11" | 3000 , 5000 | |
13-5/8" | 3000 , 5000 | ||
5000 | 11" | 5000,10000 | |
13-5/8" | 5000,10000 | ||
10000 | 11" | 10000 | |
13-5/8" | 10000 | ||
21-1/4" | 2000 | 13-5/8" | 2000 , 3000 , 5000 |
16-3/4" | 2000 , 3000 | ||
20-3/4" | 3000 | 13-5/8" | 3000 , 5000,10000 |
20-3/4" | 3000 | ||
21-1/4" | 5000 | ||
21-1/4" | 5000 | 13-5/8" | 5000,10000 |
16-3/4" | 5000 | ||
16-3/4" | 10000 |
Drilling Spacer Spools FEATURES
1) Made from high-strength alloy and processed especially with heating treatment.
2) Designed and manufactured concerning API 6A technical specifications.
3) Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
4) All steel tanks are welded with stainless steel for long-term anti-corrosion.
5) Used for high-pressure drilling, in conjunction with a flat valve for preventing blowout and connecting BOP.

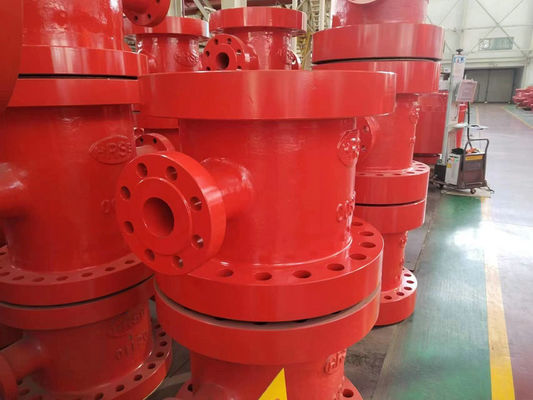

Drilling Spacer Spools Pictures
