1" 5000psi BOP Control Hose armor ss316 hammer union Fig 1502 connection

1" 5000psi BOP Control Hose armor ss316 hammer union Fig 1502 connection
1" 5000psi BOP Control Hose armor ss316 hammer union Fig 1502 connection
1" 5000psi BOP Control Hose armor ss316 hammer union Fig 1502 connection 1" 5000psi BOP Control Hose armor ss316 hammer union Fig 1502 connection

Large Image :  1" 5000psi BOP Control Hose armor ss316 hammer union Fig 1502 connection

Product Details:
Place of Origin: China
Brand Name: Hebei Jingbo
Certification: API 16D
Model Number: 1"-5000psi
Payment & Shipping Terms:
Minimum Order Quantity: 10 set
Price: 300USD-500USD
Packaging Details: Iron case
Delivery Time: 7 days
Payment Terms: L/C,T/T
Supply Ability: 100 SET per month
Contact Now

1" 5000psi BOP Control Hose armor ss316 hammer union Fig 1502 connection

Description
Size: 1 Inch Working Pressure: 5000psi
Cover: Armor Ss 316 Connection: Fig 1502 Hammer Union
Temperature: High Temperature 130 Deg C H2S: H2S Trim, Meets NACE 0175
Standard: API 16D Atnti-fire: Fire Resistance
Highlight:

5000psi BOP control hose

,

BOP control hose with SS316 armor

,

BOP control hose Fig 1502 connection

1" 5000psi BOP Control Hose armor ss316 hammer union Fig 1502 connection
1" NPT 5000PSI High Pressure Drilling Hose High Molecular Polymer Jacket Type
The 1" 5000 PSI BOP Control Hose is purpose-built for high-pressure control systems in drilling operations, ensuring dependable performance under the most demanding oilfield conditions. Featuring an armor layer constructed from SS316 stainless steel, the hose provides outstanding protection against corrosion, impact, and abrasion. The Hammer Union Fig 1502 connection delivers a secure and quick assembly solution, making it well-suited for frequent rig-up and rig-down applications. With a compact 1-inch bore and a 5,000 PSI working pressure rating, this hose is engineered to deliver safe and consistent hydraulic control for BOP systems and auxiliary drilling equipment.
Key Features
  • High pressure resistance (up to 5000 psi)
  • Flame retardant and fire-resistant performance
  • Flexible structure with multi-layer reinforcement
  • Resistant to oil, heat, and abrasion
  • Suitable for both onshore and offshore drilling rigs
Technical Specifications
Nominal Bore (in) Outer Diameter (in) Working Pressure (psi) Test Pressure (psi) Minimum Burst Pressure (psi) Minimum Bending Radius (in) End Connection Operating Time (Normal / Emergency)
3/4" (19 mm) 1.73 - 1.97 5,000 7,500 15,000 11 NPT / LP 5 min / 25 min
7/8" (22 mm) 1.85 - 2.09 5,000 7,500 15,000 12.6 NPT / LP 5 min / 25 min
1" (25 mm) 1.97 - 2.20 5,000 7,500 15,000 14.2 NPT / LP 5 min / 25 min
1 1/4" (31.5 mm) 2.20 - 2.44 5,000 7,500 15,000 18.1 NPT / LP 5 min / 25 min
1 1/2" (38 mm) 2.48 - 2.72 5,000 7,500 15,000 22 NPT / LP 5 min / 25 min
Applications
  • Hydraulic control for BOP stacks
  • Drilling rigs (onshore / offshore)
  • Emergency well control systems
  • High-risk oilfield environments requiring flame resistance
Our Advantages
  • Proven experience in supplying BOP control hoses for major drilling contractors
  • Customizable hose length, pressure rating, and connections
  • Global logistics support and fast delivery
  • API / ISO certified production facilities
Product Photos

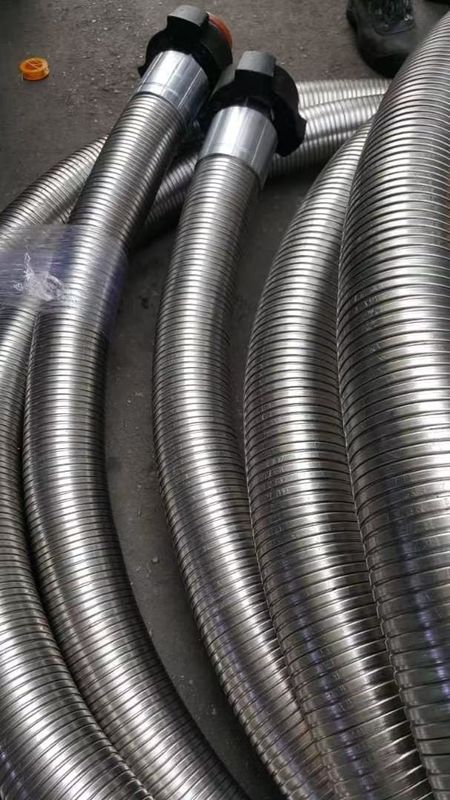

1" 5000psi BOP Control Hose armor ss316 hammer union Fig 1502 connection 0
