Fig 602, Fig 1002, Fig 1502 hammer Union API 6A Standard

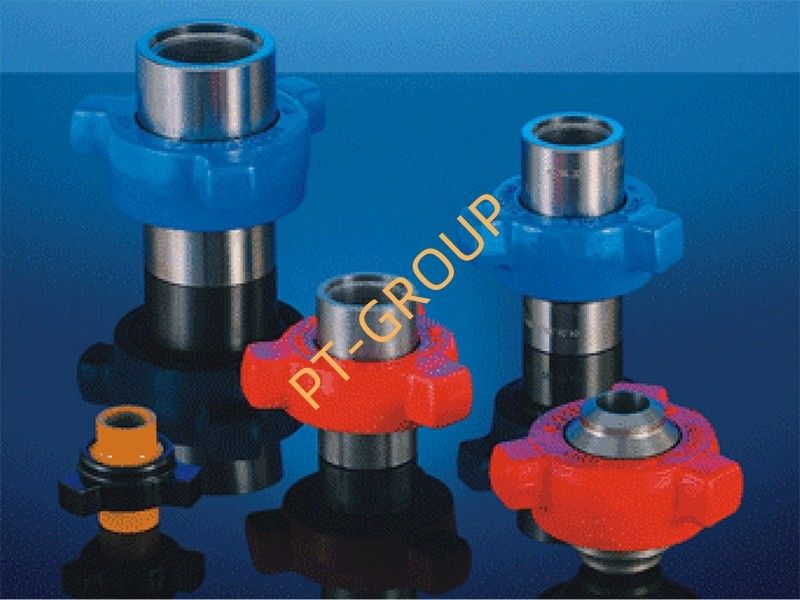

Large Image : Fig 602, Fig 1002, Fig 1502 hammer Union API 6A Standard

Product Details:

Place of Origin:	China
Brand Name:	NOV
Certification:	API 6A
Model Number:	FIG100、FIG200、FIG206、FIG400、FIG402、FIG602、FIG1002、FIG1502

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	200-10000usd
Packaging Details:	wooden case
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	100 set per month

Contact Now

Fig 602, Fig 1002, Fig 1502 hammer Union API 6A Standard

Description

Working Pressure:

7MPa（1000psi）～105MPa（15000psi）

Size:

1"～4"

Used For:

Connection For Hosed Etc

Highlight:

Fig 602 hammer Union

Fig 1002 hammer Union

Hose Connection hammer Union

Fig 602, Fig 1002, Fig 1502 Hammer Union API 6A Standard

Product Overview

The Fig 602 / Fig 1002 / Fig 1502 Hammer Union is designed in accordance with API 6A standards to provide a fast, reliable, and pressure-tight connection for high-pressure fluid transfer lines. Manufactured from forged alloy steel and heat-treated for maximum strength, these hammer unions ensure excellent performance in harsh drilling and production environments. They are widely used in mud, cementing, fracturing, and testing manifolds, offering quick assembly, tight sealing, and superior resistance to vibration and corrosion.

Technical Features

Pressure Rating	2,000 - 20,000 PSI
Size Range	2" to 4" (custom sizes available)
Material Class	AA - HH, forged high-strength alloy steel
Temperature Rating	-46°C to +121°C
Connection Type	Hammer union / flange / threaded / welded ends
Sealing Type	NBR, HNBR, or FKM seals for H₂S & CO₂ environments
Rotation Capability	Full 360° rotation, minimizing mechanical stress
Surface Treatment	Anti-corrosion coating for extended service life

Advantages

Allows smooth rotation to prevent pipeline twisting
High sealing reliability under fluctuating pressure
Compatible with standard API hammer unions and adapters
Compact, durable design suitable for onshore and offshore use
Easy assembly, inspection, and maintenance

Applications

Oilfield drilling and workover operations
Wellhead and choke manifold flowline systems
Fracturing, cementing, and acidizing units
High-pressure transfer lines for mud, gas, or cement
Testing and production facilities requiring flexible pipeline connections
