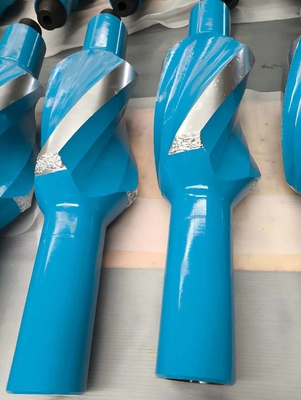

28" Spiral Welded blade stabilizer, 11" OD body with 8-5/8" Reg. box down and 8-5/8" H90 box up.

Large Image : 28" Spiral Welded blade stabilizer, 11" OD body with 8-5/8" Reg. box down and 8-5/8" H90 box up.

Product Details:

Place of Origin:	China
Brand Name:	China Brand
Certification:	API 7-1
Model Number:	28" String/Near Bit Stabilizer

Payment & Shipping Terms:

Packaging Details:	Wooden case
Delivery Time:	20-40 days
Payment Terms:	T/T

Contact Now

28" Spiral Welded blade stabilizer, 11" OD body with 8-5/8" Reg. box down and 8-5/8" H90 box up.

Description

Material:

4145H

Model:

Welded Blades

Hard Facing:

HF1000-HF5000

Connection:

NC 50

Highlight:

28 inch spiral welded blade stabilizer

downhole stabilizer with H90 box

welded blade stabilizer 11 inch OD

28" Spiral Welded Blade Stabilizer

11" OD body with 8-5/8" Reg. box down and 8-5/8" H90 box up connection.

Product Specifications

Attribute	Value
Material	4145H
Model	Welded Blades
Hard Facing	HF1000-HF5000
Connection	NC 50
Stabilizer Type	Near Bit/String Spiral Welded Blade
OD	28 inches
Fishing Neck	11 inches

Product Description

28" Near Bit/String Spiral Welded Blade Stabilizer featuring an 11" fishing neck with 8-5/8" Reg. box connection and 8-5/8" H90 box up configuration.

Application

Our complete line of downhole drilling stabilizers increases rate of penetration and controls hole deviation problems. All stabilizers (including spiral blade, straight blade, integral blade, welded blade, sleeve-type, and stainless steel nonmagnetic types) meet or exceed strict quality control standards. Manufactured from AISI 4145H modified heat-treated steel for various configurations and hole sizes.

Five Types of Hard Facing

HF1000: Crushed tungsten carbide inserts (TCI) held in a nickel bronze matrix
HF2000: Trapezoidal tungsten carbide inserts (TCI) held in a sintered carbide nickel bronze matrix
HF3000: Embedded with trapezoidal tungsten carbide inserts (TCI) spray welded on the blades
HF4000: Tungsten carbide inserts (button type) pressed tightly in blade holes at room temperature
HF5000: Oxy-acetylene process applies tough molten carbide particles in a nickel chrome matrix

Technical Datasheet
