22" Spiral Welded blade stabilizer, 11" OD body with 7-5/8” Reg. box down and 7-5/8” H90 box up

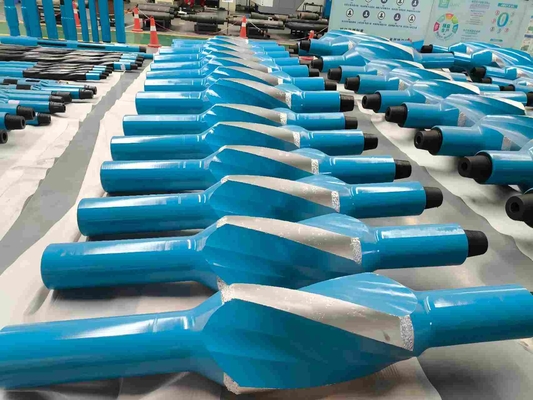

Large Image : 22" Spiral Welded blade stabilizer, 11" OD body with 7-5/8” Reg. box down and 7-5/8” H90 box up

Product Details:

Place of Origin:	China
Brand Name:	China Brand
Certification:	API 7-1
Model Number:	28" String/Near Bit Stabilizer

Payment & Shipping Terms:

Packaging Details:	Wooden case
Delivery Time:	20-40 days
Payment Terms:	T/T

Contact Now

22" Spiral Welded blade stabilizer, 11" OD body with 7-5/8” Reg. box down and 7-5/8” H90 box up

Description

Material:

4145H

Model:

Welded Blades

Hard Facing:

HF1000-HF5000

Connection:

NC 50

Highlight:

22 inch spiral welded blade stabilizer

downhole stabilizer with H90 box

11 inch OD blade stabilizer

22" Spiral Welded Blade Stabilizer

11" OD body with 7-5/8" Reg. box down and 7-5/8" H90 box up

Product Specifications

Attribute	Value
Material	4145H
Model	Welded Blades
Hard Facing	HF1000-HF5000
Connection	NC 50

Detailed Specifications

Attribute	Value
Stabilizer Type	Near Bit/String Spiral Welded Blade
OD	22 inches
Fishing Neck	11 inches
Connection	7 5/8" Reg. box x 7-5/8 H90 box up

Application

We supply a complete line of downhole drilling stabilizers to increase rate of penetration and control hole deviation problems. All stabilizers (including spiral blade, straight blade, integral blade, welded blade, sleeve-type, and stainless steel nonmagnetic types) are designed to meet or exceed strict quality control standards. All alloy stabilizers are manufactured from AISI 4145H modified heat-treated steel for various configurations and hole sizes.

Five Kinds of Hard Facing

HF1000: Crushed tungsten carbide inserts (TCI) held in a nickel bronze matrix
HF2000: Trapezoidal tungsten carbide inserts (TCI) held in a sintered carbide nickel bronze matrix
HF3000: Embedded with trapezoidal tungsten carbide inserts (TCI) spray welded on the blades
HF4000: Tungsten carbide inserts (button type) pressed tightly in the holes of blades at room temperature
HF5000: Oxy-acetylene process applies tough molten carbide particles of varying sizes in a nickel chrome matrix

Technical Datasheet
