9-1/4" Spiral integral blade stabilizers 6-1/2" OD body with 4-1/2" Reg. box down and 4" IF box up.

Large Image : 9-1/4" Spiral integral blade stabilizers 6-1/2" OD body with 4-1/2" Reg. box down and 4" IF box up.

Product Details:

Place of Origin:	China
Brand Name:	China Brand
Certification:	API 7-1
Model Number:	16" String/Near Bit Stabilizer

Payment & Shipping Terms:

Packaging Details:	Wooden case
Delivery Time:	20-40 days
Payment Terms:	T/T

Contact Now

9-1/4" Spiral integral blade stabilizers 6-1/2" OD body with 4-1/2" Reg. box down and 4" IF box up.

Description

Material:	4145H	Model:	Welded Blades
Hard Facing:	HF1000-HF5000	Connection:	API 6 5/8" Reg.

9-1/4" Spiral integral blade near bit/string stabilizers 6-1/2" OD body with 4-1/2" Reg. box down and 4" IF box up.

8-1/4" OD body with 6-5/8" Reg. box down and box up

Product Attributes

Attribute	Value
Material	4145H
Model	Integral Blades
Hard Facing	HF1000-HF5000
Connection	API 4-1/2" Reg. box down and 4" IF box up

Product Description

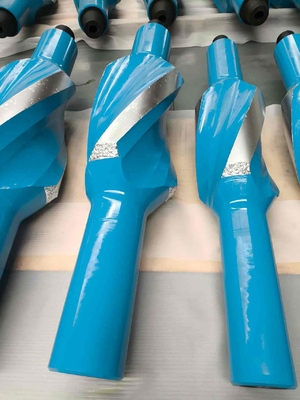

9 1/4" Spiral integral blade near bit/string stabilizer, 4-1/2" Reg. box down and 4" IF box up

Product Specifications

Attribute	Value
Material	4145H
Blade type	Integral Blades
Hard Facing	HF1000-HF5000
Connection	4-1/2" Reg. box down and 4" IF box up

Detailed Specifications

Attribute	Value
Stabilizer Type	Near Bit/String Spiral Welded Blade
OD	9 1/4 inches
Fishing Neck	6 1/2 inches
Connection	4-1/2" Reg. box down and 4" IF box up

Application

We supply a complete line of downhole drilling stabilizers to increase rate of penetration and control hole deviation problems. All stabilizers (including spiral blade, straight blade, integral blade, welded blade, sleeve-type, and stainless steel nonmagnetic types) are designed to meet or exceed strict quality control standards. All alloy stabilizers are manufactured from AISI 4145H modified heat-treated steel for various configurations and hole sizes.

Five Kinds of Hard Facing

HF1000: Crushed tungsten carbide inserts (TCI) held in a nickel bronze matrix
HF2000: Trapezoidal tungsten carbide inserts (TCI) held in a sintered carbide nickel bronze matrix
HF3000: Embedded with trapezoidal tungsten carbide inserts (TCI) spray welded on the blades
HF4000: Tungsten carbide inserts (button type) pressed tightly in the holes of blades at room temperature
HF5000: Oxy-acetylene process applies tough molten carbide particles of varying sizes in a nickel chrome matrix

Technical Datasheet
