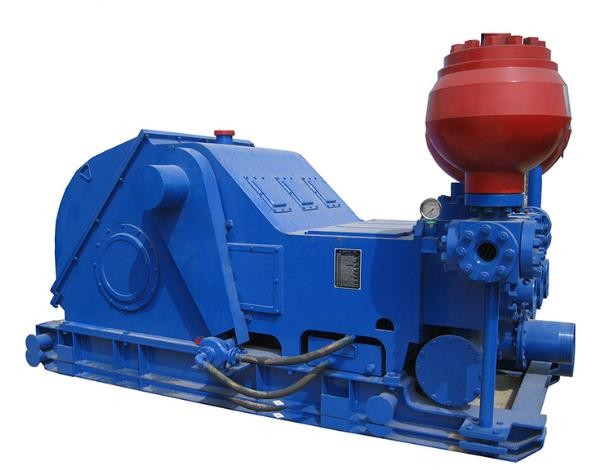

F800 Drilling Mud Pump For Drilling Rigs, China Manufacturer
Introduction
A mud pump (sometimes referred to as a mud drilling pump or drilling mud pump), is a reciprocating piston/plunger pump designed to circulate drilling fluid under high pressure (up to 7,500 psi or 52,000 kPa) down the drill string and back up the annulus. A mud pump is an important part of the equipment used for oil well drilling.
Drilling Mud Pump is manufactured under the standard of API Spec 7k, mud pump parts at the fluid end are interchangeable with the parts that are in conformity with API Spec.
Forced lubrication of the Drilling Mud Pump combined with splash lubrication to make the lubrication effect perfect;
The performance of the Drilling Mud Pump was greatly improved by the durable fluid end; and examination, mud pump repair, and mud pump maintenance are easier to make due to their independent structure.
| Liner Size | in | 6 1/2 | 6 1/4 | 6 | 5 1/2 | 5 | 4 1/2 | 4 |
| Discharge Pressure | Mpa | 14.6 | 15.8 | 17.2 | 20.4 | 24.7 | 30.5 | 34.5 |
| psi | 2118 | 2290 | 2495 | 2915 | 3582 | 4424 | 5000 | |
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | ||||||
| 160 | 636 (853) |
39.21 (621.4) |
36.26 (574.7) |
33.41 (529.5) |
28.07 (444.9) |
23.2 (367.7) |
18.79 (297.8) |
14.85 (235.2) |
| *150 | *597 (800) |
36.76 (582.6) |
34 (538.9) |
31.32 (496.4) |
26.32 (417.1) |
21.75 (344.7) |
17.62 (279.2) |
13.92 (220.6) |
| 140 | 557.2 (693.3) |
34.3 (543.6) |
31.73 (502.9) |
29.23 (463.3) |
24.57 (389.4) |
20.3 (321.7) |
16.45 (260.7) |
12.99 (205.8) |
| 130 | 517.4 (693.3) |
31.85 (504.8) |
29.47 (467.1) |
27.14 (430.1) |
22.81 (361.5) |
18.85 (298.7) |
15.27 (242.0) |
12.06 (191.1) |
| 120 | 477.6 (640) |
29.4 (465.9) |
27.2 (431.1) |
25.06 (397.2) |
21.06 (333.8) |
17.4 (275.7) |
14.1 (223.4) |
11.14 (176.5) |
| 110 | 437.8 (587.7) |
26.95 (427.1) |
24.93 (395.1) |
22.97 (364.0) |
19.3 (305.9) |
15.95 (252.8) |
12.92 (204.7) |
10.21 (161.8) |
| 1 | 3.98 (5.33) |
0.245 (3.88) |
0.227 (3.59) |
0.209 (3.31) |
0.175 (2.77) |
0.145 (2.29) |
0.117 (1.85) |
0.093 (1.47) |
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | ||||||||
| --The * present the recommendatory SPM and input power when mud pump runs continuously. | ||||||||
