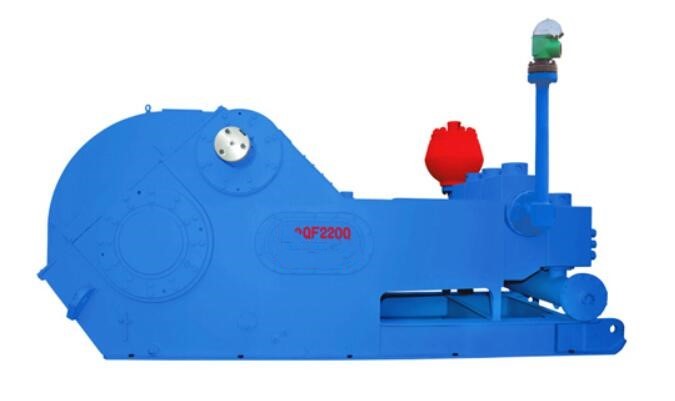

QF2200 Triplex Piston Drilling Mud Pump In Oilfield
Triplex Piston Drilling Mud Pump Specification :
Rated input Power : 1641 kW(2200 HP)Stroke Per Minute : 110 SPM
Stroke Length: 330.2 mm (13")Gear Ratio: 3.969:1
Max. Working Pressure: 52 MPa (7500 psi)Valve: API#8
Max.Liner Size : 230 mm(9 1/20")
Suction Inlet Flange: 254 mm (10") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange, 70 MPa (10000 psi)Overall Dimension (L×W×H):5065×2667×2137 mm3(16.62×8.75×7.01 ft3)Approx Weight: 28380 kg (62567 lb)
Parameters of Triplex Piston Drilling Mud Pump
| Liner Size | mm |
230
|
220
|
210
|
200
|
190
|
180
|
170
|
160
|
150
|
140
|
| Discharge Pressure | Mpa |
19.5
|
21.7
|
23.5
|
25.8
|
28.7
|
31.9
|
35.8
|
40.4
|
46.0
|
51.7
|
| psi |
2823
|
3141
|
3402
|
3735
|
4155 |
4618 |
5183
|
5849
|
6660
|
7500
|
|
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | |||||||||
| 110 |
1640
(2200)
|
75.5
|
69
|
62.9
|
57.1
|
51.5
|
46.2
|
41.2
|
36.5
|
32.1
|
28
|
| 100 |
1490
(2000)
|
68.6
|
62.7
|
57.2
|
51.9
|
46.8
|
42.0
|
37.5
|
33.2
|
29.2
|
25.5
|
| 90 |
1342
(1800)
|
61.8
|
56.5
|
51.5
|
46.7
|
42.1
|
37.8
|
33.7
|
29.9
|
26.3
|
22.9
|
| 80 |
1192
(1600)
|
54.9
|
50.2
|
45.7
|
41.5
|
37.5
|
33.6
|
30.0
|
26.5
|
23.3
|
20.3
|
| 50 |
745.5
(1000)
|
34.3
|
31.4
|
28.6
|
25.9
|
23.4
|
21.0
|
18.7
|
16.6
|
14.6
|
12.7
|
| 1 |
14.9
(20)
|
0.68
|
0.63
|
0.57
|
0.52
|
0.47
|
0.42
|
0.37
|
0.33
|
0.29
|
0.25
|
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | |||||||||||
| --The * present the recommendatory SPM and input power when the mud pump runs continuously. | |||||||||||
Details
F2000 Triplex Piston Drilling Mud Pump is firm and compact in structure and small in size, with good functional performances, which can adapt to drilling technological requirements such as oilfield high pump pressure and large displacement, etc.
The F series Triplex Piston Drilling Mud Pump can be maintained at a lower stroke rate for their long stroke, which effectively improves the feeding water performance of mud pumps and prolongs the service life of the fluid end.

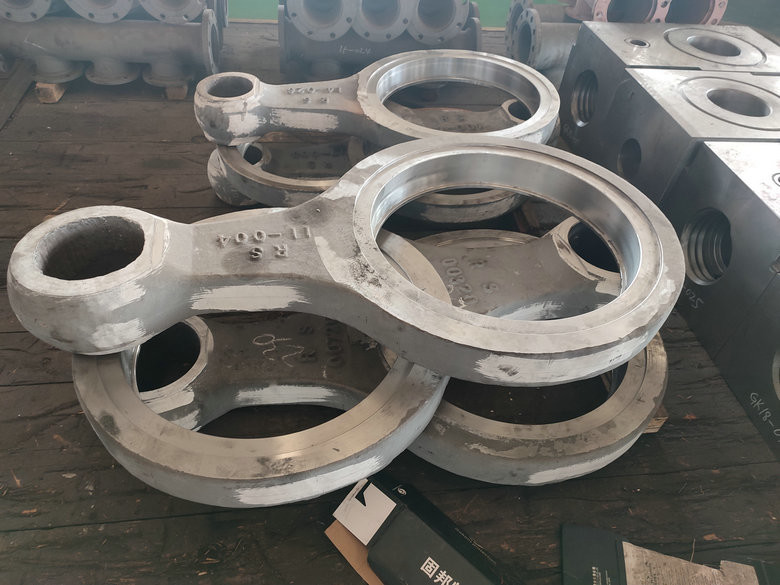

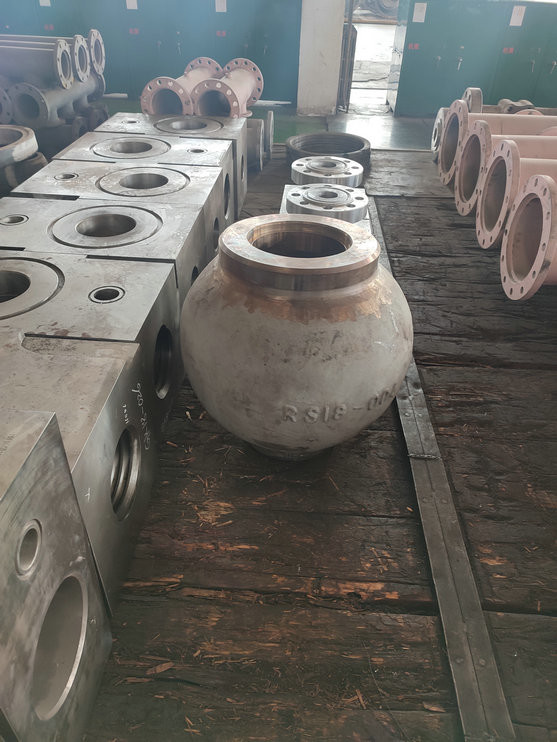

The suction stabilizer, with its advanced structure and reliable service, can achieve the best buffering effect. Power ends of the F series mud pumps adopt the reliable combination of forced lubrication and splash lubrication to increase the service life of power ends.
