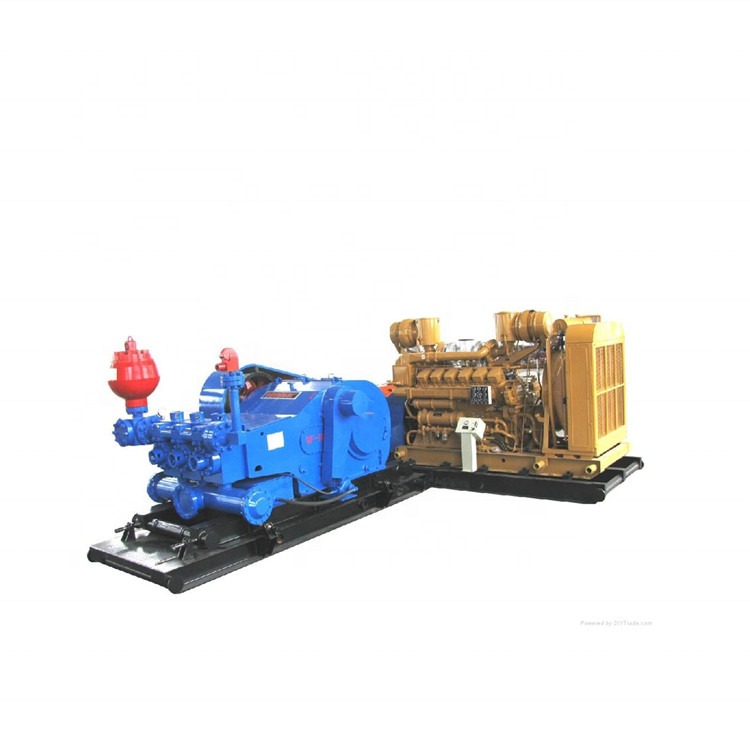

QF800 Slurry Pump For Drilling Rig 800HP

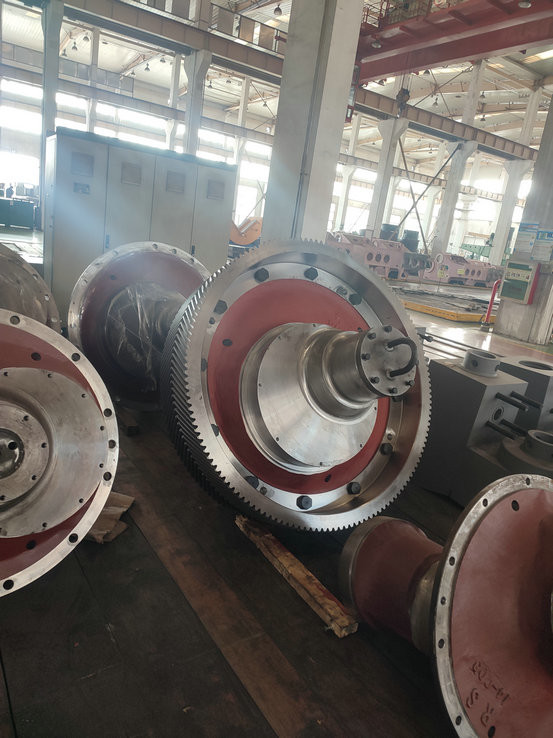

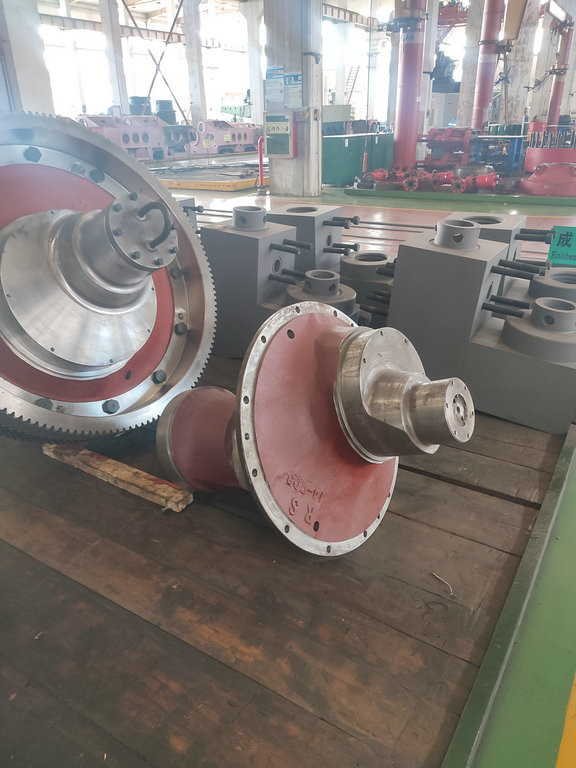

The RS-QF800 Slurry Pump is lighter than the RS-F800 mud pump by 1/3. its crankshaft is forged and fully balanced. The main wearing parts are the same as the RS-F800 mud pump.
Slurry Pump Specification :
Rated Input Power: 597 kW (800 HP)Stroke Per Minute: 155 SPM
Stroke Length: 220 mm (8.66")
Gear Ratio: 4.038:1
Max.Working Pressure: 34.5 MPa (5000 psi)
Valve: API#6
Max.Liner Size : 170 mm(6 1/2")
Suction Inlet Flange: 203 mm (8") flange
Discharge Outlet Flange: 103 mm (4 1/16") flange, 34.5 MPa (5000 psi)Overall Dimension (L×WxH): 3583×1960×1534 mm3(11.76×6.43×5.03 ft3)Approx Weight: 11171 kg (24628 lb)
Slurry Pump Specs.
Liner Size | in | 170 | 160 | 150 | 140 | 130 | 120 | 110 | 110 |
Discharge Pressure | Mpa | 13.88 | 15.67 | 17.83 | 20.47 | 23.74 | 27.86 | 33.16 | 34.5 |
psi |
2011
|
2271
|
2584
|
2966
|
3440
|
4037
|
4805
|
5000
|
|
Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | |||||||
160 |
616
(825)
|
39.96
(633.38)
|
35.38
(560.78)
|
31.11
(493.10)
|
27.08
(429.23)
|
23.36
(370.26)
|
19.90
(315.42)
|
16.72
(265.02)
|
13.82
(219.05)
|
*155 |
*597
(800)
|
38.71
(613.57)
|
34.28
(543.35)
|
30.13
(477.57)
|
26.24
(415.91)
|
22.63
(358.69)
|
19.28
(305.59)
|
16.20
(256.78)
|
13.39
(212.24)
|
150 |
577
(774)
|
37.45
(593.59)
|
33.18
(525.91)
|
29.16
(462.20)
|
25.39
(402.44)
|
21.90
(347.12)
|
18.66
(295.77)
|
15.67
(248.37)
|
12.96
(205.42)
|
140 |
539
(722)
|
34.95
(553.97)
|
30.97
(490.88)
|
27.21
(431.29)
|
23.71
(375.81)
|
20.44
(323.98)
|
17.41
(275.95)
|
14.63
(231.89)
|
12.09
(191.63)
|
130 |
500
(670)
|
32.46
(514.50)
|
28.75
(455.70)
|
25.27
(400.54)
|
22.01
(348.87)
|
18.98
(300.84)
|
16.17
(256.30)
|
13.58
(215.25)
|
11.23
(178.00)
|
120 |
462
(619)
|
29.96
(474.88)
|
26.54
(420.67)
|
23.32
(369.63)
|
20.31
(321.92)
|
17.52
(277.70)
|
14.93
(236.65)
|
12.54
(198.76)
|
10.37
(164.37)
|
110 |
423
(567)
|
27.46
(435.25)
|
24.33
(385.64)
|
21.38
(338.88)
|
18.62
(295.13)
|
16.06
(254.56)
|
13.68
(216.83)
|
11.49
(182.12)
|
9.503
(150.63)
|
1 |
3.85
(5.16)
|
0.2497
(3.9578)
|
0.2212
(3.5061)
|
0.1944
(3.0813)
|
0.1693
(2.6835)
|
0.1460
(2.3141)
|
0.1244
(1.9718)
|
0.1045
(1.6564)
|
0.08639
(1.36931)
|
--Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | |||||||||
--The * present the recommendatory SPM and input power when the mud pump runs continuously. |
Slurry Pump Spare parts
