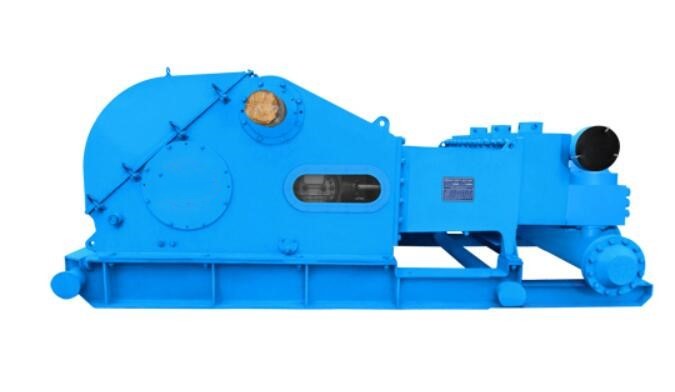

F1600FTL Rig Mud Pump 1193 KW Hydraulic Mud Pump
The frame of the F1600FTL Rig Mud Pump is a split structure. The maximum weight of a single module of the split pump is not more than 8818.5lb(4000kg). F1600FTL Rig Mud Pump can be transported by aircraft. lt meets the drilling needs of the jungle and other places where the traffic is inconvenient. The L-shaped liquid cylinder is adopted on the fluid end. The maximum working pressure can reach 51.7MPa(7500 psi).
Parameters of F1600FTL Rig Mud Pump
| Liner Size | in |
7 1/4
|
7 | 6 3/4 |
6 1/2
|
6 1/4
|
6
|
5 1/2
|
5 |
4 1/2
|
| Discharge Pressure | Mpa |
22.0
|
23.6
|
25.4
|
27.4
|
29.7
|
32.2
|
38.3
|
46.3
|
51.7
|
| psi |
3190
|
3422
|
3683
|
3973 |
4307 |
4669
|
5555
|
6715
|
7500
|
|
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | ||||||||
| 120 |
1193
(1600)
|
48.71
(772.0)
|
45.41
(719.7)
|
41
(649.8)
|
39.15
(620.5)
|
36.20
(573.7)
|
33.36
(528.7)
|
28.03
(444.2)
|
23.17
(367.2)
|
18.77
(281.7)
|
| 110 |
1093
(1466)
|
44.65
(707.7)
|
41.63
(659.8)
|
38.07
(603.4)
|
35.89
(568.8)
|
33.18
(525.9)
|
30.58
(484.7)
|
25.69
(407.1)
|
21.24
(336.6)
|
17.20
(272.6)
|
| 100 |
994
(1333)
|
40.59
(643.3)
|
37.84
(599.7)
|
35.18
(557.6)
|
32.63
(517.1)
|
30.17
(478.2)
|
27.8
(440.6)
|
23.36
(370.2)
|
19.31
(306.0)
|
15.64
(248.1)
|
| 90 |
895
(1200)
|
36.53
(579.0)
|
34.06
(539.8)
|
31.67
(501.9)
|
29.36
(465.3)
|
27.15
(430.3)
|
25.02
(396.5)
|
21.02
(333.1)
|
13.38
(212.0)
|
14.08
(223.2)
|
| 50 |
497
(666)
|
20.29
(321.6)
|
18.92
(299.8)
|
17.59
(278.8)
|
16.31
(258.5)
|
15.08
(239.0)
|
13.9
(220.3)
|
11.68
(185.1)
|
9.65
(152.9)
|
7.82
(123.9)
|
| 1 |
9.94
(13.3)
|
0.406
(6.43)
|
0.3784
(6.00)
|
0.3518
(5.57)
|
0.3518
(5.57)
|
0.3263
(5.17)
|
0.278
(4.40)
|
0.2336
(3.70)
|
0.1931
(3.06)
|
0.1564
(2.48)
|
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | ||||||||||
| --The * present the recommendatory SPM and input power when the mud pump runs continuously. | ||||||||||
F1600FTL Rig Mud Pump Specification :
Rated Input Power: 1193 kW(1600HP)
Stroke Per Minute: 120 SPM
Stroke Length: 304.8 mm (12")
Gear Ratio: 4.206:1
Max. Working Pressure: 52 MPa (7500 psi)
Valve: API#7
Max.Liner Size : 184 mm (7 1/4")
Suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 103 mm (4 1/16") flange, 70 MPa (10000 psi)
Overall Dimension (L×WxH):4959×2493×1951 mm3(16.27×8.18×6.40 ft3)
Approx Weight: 26190 kg (57739 lb)
