QF1600HL Water Well Drilling Mud Pump Light Weight
Details

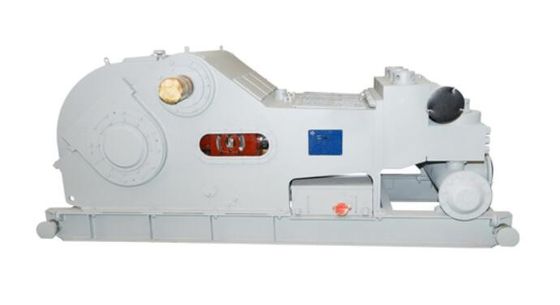

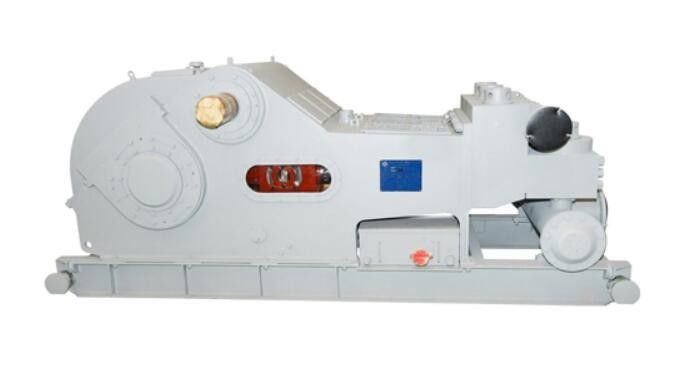

QF1600HL light high-pressure Water Well Drilling Mud pump based on QF1600 light pump power end structure. The fluid end structure is upgraded. QF1600HL Water Well Drilling Mud Pump has absorbed the advantages of the existing drilling pump. The structure and parameters are optimized by using the modern design method. The pump has a small volume and is lightweight. It can be used in the volume and quality index limitation occasions, such as marine, swamp, and jungle regions for drilling. It also can meet the requirements of high-pressure jet drilling technology. The maximum working pressure can reach 51.7MPa (7500 psi). Compared with the F-1600HL pump, the whole machine weight loss is 5.5 tons. And it has the advantages of advanced structure, lightweight, stable work, long life, easy to maintain, and so on.
Parameters of QF1600HL Water Well Drilling Mud Pump
| Liner Size | in | 7 | 6 3/4 |
6 1/2
|
6 1/4
|
6
|
5 1/2
|
5 | 4 1/2 |
| Discharge Pressure | Mpa |
23.7
|
25.56
|
27.6
|
29.8
|
32.31
|
38.5
|
46.79
|
51.7
|
| psi |
3437
|
3706
|
4002 |
4321 |
4685
|
5583
|
6785
|
7500
|
|
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | |||||||
|
140
|
1285
(1723
|
48.6
(770.3)
|
45.2
(716.4)
|
41.9
(664.1)
|
38.8
(615.0)
|
35.7
(565.8)
|
30.0
(475.5)
|
24.8
(393.0)
|
20.1
(318.6)
|
|
*130
|
*1193
(1600)
|
45.2
(716.4)
|
42.0
(665.7)
|
38.9
(616.5)
|
36.0
(570.6)
|
33.2
(526.2)
|
27.9
(442.2)
|
23.0
(364.5)
|
18.6
(294.8)
|
| 120 |
1101
(1477)
|
41.7
(660.9)
|
38.7
(613.4)
|
35.9
(569.0)
|
33.2
(526.2)
|
30.6
(485.0)
|
25.7
(407.3)
|
21.2
(336.0)
|
17.2
(272.6)
|
| 110 |
1009
(1354)
|
38.2
(605.5)
|
35.5
(562.7)
|
32.9
(521.5)
|
30.5
(483.4)
|
28.0
(443.8)
|
23.6
(374.0)
|
19.5
(309.0)
|
15.8
(250.4)
|
| 100 |
918
(1231)
|
34.7
(550.0)
|
32.3
(512.0)
|
30.0
(475.5)
|
27.7
(439.0)
|
25.5
(404.2)
|
21.4
(339.2)
|
17.7
(280.5)
|
14.3
(226.6)
|
| 50 |
459
(615)
|
17.4
(275.8)
|
16.1
(255.2)
|
15.0
(237.8)
|
13.8
(218.7)
|
12.7
(201.3)
|
10.7
(169.6)
|
8.8
(139.5)
|
7.2
(114.1)
|
| 1 |
9.18
(12.3)
|
0.347
(5.50)
|
0.323
(5.12)
|
0.300
(4.75)
|
0.277
(4.39)
|
0.255
(4.04)
|
0.214
(3.39)
|
0.177
(2.81)
|
0.143
(2.27)
|
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | |||||||||
| --The * present the recommendatory SPM and input power when the mud pump runs continuously. | |||||||||
QF1600HL Water Well Drilling Mud Pump specification :
Rated input Power: 1193 kW (1600 HP)
Stroke Per Minute: 130 SPM
stroke Length: 279.4 mm (11")
Gear Ratio: 3.778:1
Max. Working Pressure: 52 MPa (7500 psi)
Valve: API#7
Max.Liner Size : 180 mm (7")
Suction Inlet Flange: 304.8 mm (12") flange
Discharge Outlet Flange: 103 mm (4 1/16") flange, 70 MPa (10000 psi)
Overall Dimension (L×W×H):4804×2219×1984 mm3(15.76×7.28×6.51 ft3)
Approx Weight: 22380 kg (49339 lb)
