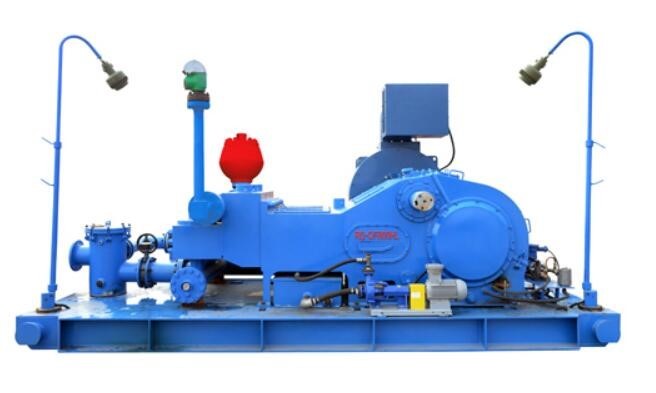

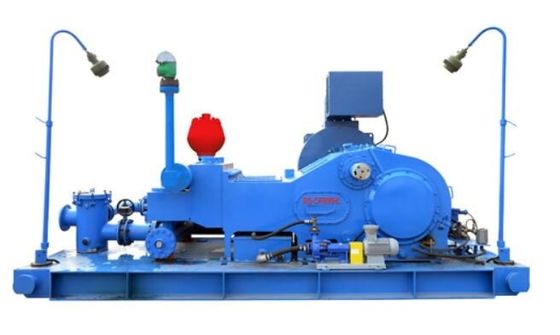

QF800HL 597KW Drilling Mud Pump Light High Pressure
A light high-pressure Drilling Mud Pump is a new type of drilling pump designed and developed by our company to meet the requirements of high-pressure operation in coiled tubing operation. It can not only meet the requirements of special working conditions but also meet conventional drilling and workover operations.
QF800HL Drilling Mud Pump Specification :
Rated Input Power: 597 kW (800 HP)
Stroke Per Minute: 150 SPM
Stroke Length: 220 mm (8.66")
Gear Ratio: 4.038:1
Max. Working Pressure: 51.7 MPa (7500 psi)
Valve: API#5
Max.Liner Size : 160 mm (6")
Suction Inlet Flange : 203 mm(8") flange
Discharge Outlet Flange: 103 mm (4 1/16") flange, 69 MPa (10000 psi)
Overall Dimension (L×WxH): 3800×1980×1529 mm3(12.47×6.49×4.95 ft3)
Approx Weight: 13935 kg (30721 lb)
QF800HL Drilling Mud Pump Specs.
| Liner Size | in | 160 | 150 | 140 | 130 | 120 | 110 | 100 | 90 |
| Discharge Pressure | Mpa |
16.2
|
18.4
|
21.2
|
24.5
|
28.8
|
34.2
|
41.4
|
51.7
|
| psi |
2350
|
2669
|
3075
|
3553
|
4177 |
4960
|
6005
|
7500
|
|
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | |||||||
| 150 |
597
(800)
|
33.18
|
29.16
|
25.39
|
21.90
|
18.66
|
15.67
|
12.96
|
10.49
|
| 140 |
577
(774)
|
30.97
|
27.22
|
23.70
|
20.44
|
17.42
|
14.63
|
12.10
|
9.79
|
| 130 |
539
(722)
|
28.76
|
25.27
|
22.00
|
18.98
|
16.17
|
13.58
|
11.23
|
9.09
|
| 120 |
500
(670)
|
26.54
|
23.33
|
20.31
|
17.52
|
14.93
|
12.54
|
10.37
|
8.39
|
| 110 |
462
(619)
|
24.33
|
21.38
|
18.62
|
16.06
|
13.68
|
11.49
|
9.50
|
7.69
|
| 100 |
423
(567)
|
22.12
|
19.44
|
16.93
|
14.60
|
12.44
|
10.45
|
8.64
|
6.99
|
| 1 |
3.85
(5.16)
|
0.2212
|
0.1944
|
0.1693
|
0.1460
|
0.1244
|
0.1045
|
0.0864
|
0.0699
|
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | |||||||||
| --The * present the recommendatory SPM and input power when the mud pump runs continuously. | |||||||||
