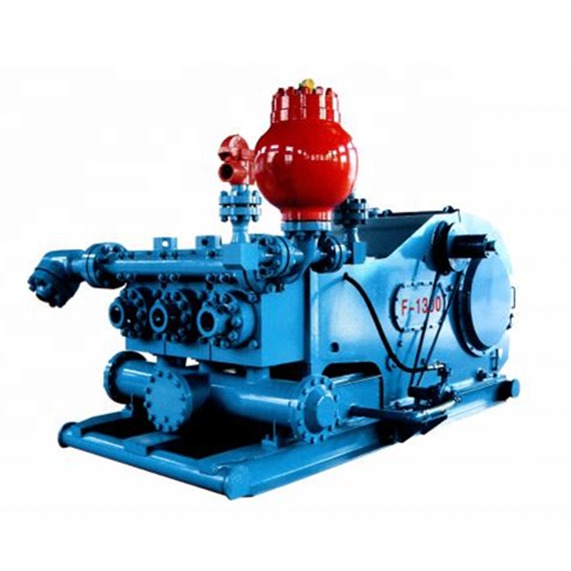

800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling

800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling
800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling 800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling 800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling

Large Image :  800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling

Product Details:
Place of Origin: China
Brand Name: Hebei Pantu
Certification: API 7K & ISO
Model Number: F800FT
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000USD~50000USD
Packaging Details: 3302mm*1671mm*1412mm(13ft*6.85ft*5.56ft)
Delivery Time: 45 days
Payment Terms: L/C,T/T
Supply Ability: 20sets/month
Contact Now

800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling

Description
Name: Drilling Mud Pump 800HP Model: F800FT
Strokes Per Minute: 150 Stroke Length: 229mm(9")
Gear Ratio: 4.185:1 Application: Water Well Drilling
Gear Type: Herringbone Gear Srandard: API 7K
Highlight:

800HP Drilling Mud Pump

,

Water Well Drilling 800 Mud Pump

,

F800 Mud Pump 800HP

800HP Drilling Mud Pump F800 Mud Pump For Water Well Drilling
Product Specifications
Attribute Value
Name Drilling Mud Pump 800HP
Model F800FT
Strokes per minute 150
Stroke Length 229mm (9")
Gear Ratio 4.185:1
Application Water Well Drilling
Gear Type Herringbone Gear
Standard API 7K
Product Overview

The F800FT Drilling Mud Pump features a fission frame design based on the RS-F800 mud pump. With single modules weighing no more than 2.5t, it's helicopter-transportable, making it ideal for jungle drilling operations.

Key Features
  • Durable Construction - High-strength alloy steel fabrication for extended service life in harsh conditions
  • High Pumping Efficiency - Optimized fluid end design ensures steady displacement with minimal pulsation
  • Flexible Power Options - Compatible with both electric motor and diesel engine drives
  • Easy Maintenance - Modular design enables quick fluid end parts replacement to minimize downtime
  • Enhanced Lubrication System - Combination splash and forced lubrication extends bearing life
  • API & ISO Compliance - Manufactured to API Spec 7K and ISO 9001 standards
Technical Specifications
Liner Size in 6 1/2 6 1/4 6 5 1/2 5 4 1/2 4
Discharge Pressure Mpa 14.6 15.8 17.2 20.4 24.7 30.5 34.5 psi 2118 2290 2495 2915 3582 4424 5000
Stroke per Minute (SPM) Power KW(HP) Displacement L/s(GPM)
160 636 (853) 39.21 (621.4) 36.26 (574.7) 33.41 (529.5) 28.07 (444.9) 23.2 (367.7) 18.79 (297.8) 14.85 (235.2)
150* 597 (800) 36.76 (582.6) 34 (538.9) 31.32 (496.4) 26.32 (417.1) 21.75 (344.7) 17.62 (279.2) 13.92 (220.6)
140 557.2 (693.3) 34.3 (543.6) 31.73 (502.9) 29.23 (463.3) 24.57 (389.4) 20.3 (321.7) 16.45 (260.7) 12.99 (205.8)
130 517.4 (693.3) 31.85 (504.8) 29.47 (467.1) 27.14 (430.1) 22.81 (361.5) 18.85 (298.7) 15.27 (242.0) 12.06 (191.1)
120 477.6 (640) 29.4 (465.9) 27.2 (431.1) 25.06 (397.2) 21.06 (333.8) 17.4 (275.7) 14.1 (223.4) 11.14 (176.5)
110 437.8 (587.7) 26.95 (427.1) 24.93 (395.1) 22.97 (364.0) 19.3 (305.9) 15.95 (252.8) 12.92 (204.7) 10.21 (161.8)
1 3.98 (5.33) 0.245 (3.88) 0.227 (3.59) 0.209 (3.31) 0.175 (2.77) 0.145 (2.29) 0.117 (1.85) 0.093 (1.47)
*Performance data calculated with 90% mechanical efficiency and 100% volumetric efficiency
*Recommended SPM and input power for continuous operation
F800FT Drilling Mud Pump Quick Details
Rated input Power: 597 kW (800 HP)
Stroke Per Minute: 150 SPM
Stroke Length: 229 mm (9")
Gear Ratio: 4.185:1
Max. working Pressure: 34.5 MPa (5000 psi)
Valve: API#6
Max.Liner Size: 170 mm (6 1/2")
Suction inlet Flange: 254 mm (10") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange, 34.5 MPa (5000 psi)
Overall Dimension (L×W×H): 3302×1671×1412 mm (13×6.58×5.56 ft)
Approx Weight: 14000 kg (30865 lb)
Applications
  • Onshore and offshore oil drilling rigs
  • Geothermal drilling projects
  • Coalbed methane drilling
  • Large-diameter water well drilling
Why Choose Our Mud Pump?
  • Proven performance in Middle East, North America, Russia, and Africa oilfields
  • Global spare parts supply and comprehensive after-sales service network
