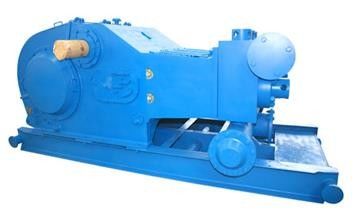

F800 Drilling Mud Pump For Drilling Rigs
Introduction
The F series Drilling Mud Pump is developed by our company independently, which include F-500, F-800.F-1000, F-1300, F-1600, and F-2200 pumps in the metric system or in the British system. The products keep the features in F series including advanced structure, small size, reliability, and easy of maintenance. The products by Rongsheng have employed the same manufacturing technologies and quality standards as products provided by Baoshi and Lanshi companies in the Chinese market.
Parameters of Drilling Mud Pump
| Liner Size | in | 6 1/2 | 6 1/4 | 6 | 5 1/2 | 5 | 4 1/2 | 4 |
| Discharge Pressure | Mpa | 14.6 | 15.8 | 17.2 | 20.4 | 24.7 | 30.5 | 34.5 |
| psi | 2118 | 2290 | 2495 | 2915 | 3582 | 4424 | 5000 | |
| Stroke per Minute (SPM) |
Power KW(HP) |
Displacement L/s(GPM) | ||||||
| 160 | 636 (853) |
39.21 (621.4) |
36.26 (574.7) |
33.41 (529.5) |
28.07 (444.9) |
23.2 (367.7) |
18.79 (297.8) |
14.85 (235.2) |
| *150 | *597 (800) |
36.76 (582.6) |
34 (538.9) |
31.32 (496.4) |
26.32 (417.1) |
21.75 (344.7) |
17.62 (279.2) |
13.92 (220.6) |
| 140 | 557.2 (693.3) |
34.3 (543.6) |
31.73 (502.9) |
29.23 (463.3) |
24.57 (389.4) |
20.3 (321.7) |
16.45 (260.7) |
12.99 (205.8) |
| 130 | 517.4 (693.3) |
31.85 (504.8) |
29.47 (467.1) |
27.14 (430.1) |
22.81 (361.5) |
18.85 (298.7) |
15.27 (242.0) |
12.06 (191.1) |
| 120 | 477.6 (640) |
29.4 (465.9) |
27.2 (431.1) |
25.06 (397.2) |
21.06 (333.8) |
17.4 (275.7) |
14.1 (223.4) |
11.14 (176.5) |
| 110 | 437.8 (587.7) |
26.95 (427.1) |
24.93 (395.1) |
22.97 (364.0) |
19.3 (305.9) |
15.95 (252.8) |
12.92 (204.7) |
10.21 (161.8) |
| 1 | 3.98 (5.33) |
0.245 (3.88) |
0.227 (3.59) |
0.209 (3.31) |
0.175 (2.77) |
0.145 (2.29) |
0.117 (1.85) |
0.093 (1.47) |
| --Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency. | ||||||||
| --The * present the recommendatory SPM and input power when mud pump runs continuously. | ||||||||
Specification of Drilling Mud Pump :
Rated input Power: 597 kW(800 HP)
Stroke Per Minute: 150 SPM
Stroke Length: 229 mm (9")
Gear Ratio: 4.185:1
Max. Working Pressure: 34.5 MPa (5000 psi)
Valve: API#6
Max.Liner Size : 170 mm (6 1/2")
Suction Inlet Flange: 254 mm (10") flange
Discharge Outlet Flange: 130.2 mm (5 1/8") flange,34.5 MPa (5000 psi)
Overall Dimension (L×W×H):3302×1671×1412 mm3(13×6.58×5.56 ft3)Approx
Weight: 14000 kg (30865 lb)
