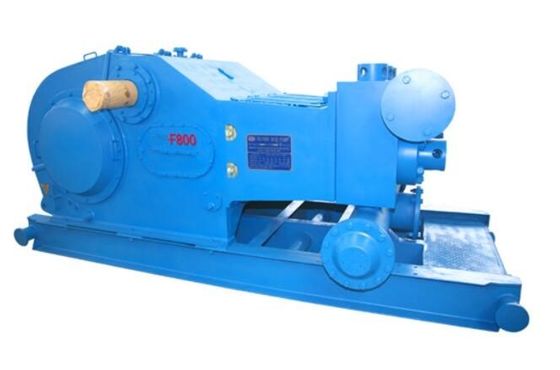

API 7K Drilling Mud Pump Good Rigidity Mud Motor Pump For Drilling Rigs

Large Image : API 7K Drilling Mud Pump Good Rigidity Mud Motor Pump For Drilling Rigs

Product Details:

Place of Origin:	China
Brand Name:	Hebei Pantu
Certification:	API 7K & ISO
Model Number:	F-800

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10000USD~50000USD
Packaging Details:	3302mm1671mm1412mm(13ft6.85ft5.56ft)
Delivery Time:	45 days
Payment Terms:	L/C,T/T
Supply Ability:	20sets/month

Contact Now

API 7K Drilling Mud Pump Good Rigidity Mud Motor Pump For Drilling Rigs

Description

Name:	Mud Pumps For Drilling Rigs	Model:	F-800
Strokes Per Minute:	150	Stroke Length:	229mm(9")
Gear Ratio:	4.185:1	Advantage:	Good Rigidity
Gear Type:	Herringbone Gear	Srandard:	API 7K
Highlight:	API 7K Drilling Mud Pump , Good Rigidity Mud Motor Pump , API 7K Mud Motor Pump

API 7K Drilling Mud Pump Good Rigidity Mud Motor Pump For Drilling Rigs

Product Specifications

Attribute	Value
Name	Mud Pumps For Drilling Rigs
Model	F-800
Strokes per minute	150
Stroke Length	229mm(9")
Gear Ratio	4.185:1
Advantage	Good Rigidity
Gear Type	Herringbone Gear
Standard	API 7K

Product Overview

Product Type: Triplex Single-Acting
Strokes per minute: 150
Stroke Length(mm/in): 229/9"
Max. Liner Diameter (mm/in): 170/6 3/4"

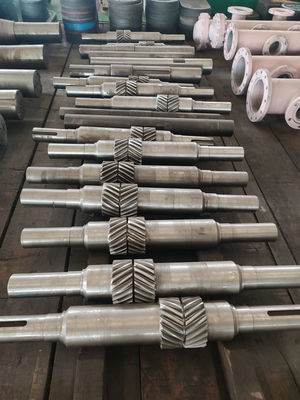

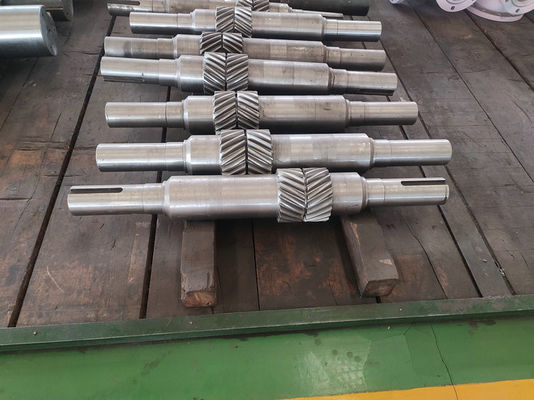

Gear: Herringbone Gear
Valve Pot: API-6#
Gear Ratio: 4.185:1
Dia of Suction Inlet(mm/in): 254/10"
Dia of Discharge Outlet: 5 1/8"flange 5000psi
Dia. of Pinion Shaft(mm/in): 177.8(7)
Max Pressure(Mpa/psi): 34.5/5000
Overall Dimensions(mm/in): 3963*3025*2410 / 56"*119"*95"
Weight kg(lb): 14500(31970)

Key Features

Durable Construction - Fabricated with high-strength alloy steel for longer service life under harsh drilling conditions.

High Pumping Efficiency - Optimized fluid end design ensures steady displacement and minimal pulsation.

Flexible Power Options - Compatible with both electric motor and diesel engine drives.

Easy Maintenance - Modular design allows quick replacement of fluid end parts, reducing downtime.

Enhanced Lubrication System - Combination of splash and forced lubrication for extended bearing life.

API & ISO Compliance - Designed and manufactured according to API Spec 7K and ISO 9001 standards.

Technical Specifications

Liner Size	in	6 1/2 \| 6 1/4 \| 6 \| 5 1/2 \| 5 \| 4 1/2 \| 4
Liner Size	in	Discharge Pressure
		Mpa	14.6	15.8	17.2	20.4	24.7	30.5	34.5
		psi	2118	2290	2495	2915	3582	4424	5000
Stroke per Minute (SPM)	Power KW(HP)	Displacement L/s(GPM)	160 \| 636 (853) \| 39.21 (621.4)
			150 \| 597 (800) \| 36.76 (582.6)
			140 \| 557.2 (693.3) \| 34.3 (543.6)
			130 \| 517.4 (693.3) \| 31.85 (504.8)
			120 \| 477.6 (640) \| 29.4 (465.9)
			110 \| 437.8 (587.7) \| 26.95 (427.1)
			1 \| 3.98 (5.33) \| 0.245 (3.88)

Performance data are calculated by 90% mechanical efficiency and 100% volumetric efficiency.

The * present the recommendatory SPM and input power when the mud pump runs continuously.

Applications

Onshore and offshore oil drilling rigs
Geothermal drilling projects
Coalbed methane drilling
Large-diameter water well drilling

Why Choose Our Mud Pump?

Proven track record in Middle East, North America, Russia, and Africa oilfields.
Global spare parts supply and after-sales service network.
